Introduction

This documentation includes content that details the functions that make up the Light Control Proxy which is supported in the DriverWorks Software Development Kit.

Additional driver development documentation supporting light driver development can be found in the DriverWorks Fundamentals Guide. This includes:

Light Driver Development Best Practices

Light Proxy Extras Interface Library

Proxies (Commands)

A proxy driver is an interface to the Control4 system for a set of devices that share common functionality. For instance, most lights have common controls such as ON, OFF and DIM. The light proxy allows for a common user interface to control all lights. The Control4 system (Director) sends information to and receives information from the proxy drivers. The proxy drivers send information to and receives information from the protocol drivers. Remember, your DriverWorks driver interacts with the proxy driver which then interacts with the system. As a driver developer you will be relying on this proxy to provide status (notification) to the Control4 system for the device you are controlling. You will also receive commands from the system that you will act on to control the device. These commands and notifications are at the heart of what you will be implementing in your driver. Essentially your driver is becoming the go-between from the Control4 system and your device with the proxy driver giving structure to the commands and notifications which you will be implementing. Your driver can facilitate communications with multiple types of proxies for a single device. As an example, a Security System driver will utilize both the Security proxy and the Contacts proxy. These additional proxies are configured in the <connections> section of the .c4z.

Protocol (Notifications)

Two similar devices may have the same functionality but utilize a very different command set. A protocol driver provides the device-specific information needed to communicate with the Control4 system. In the case of DriverWorks, the DriverWorks driver is the protocol driver. When combined with the device-specific.c4Z file it provides the custom code necessary to implement the 2-way device driver. In the case of DriverWorks, the DriverWorks driver is the protocol driver. When combined with the device-specific.c4Z file it provides the custom code necessary to implement the 2-way device driver.

What’s New

What was New in 3.4.2

There were no modifications to the Light V2 Proxy in conjunction with O.S. Release 3.4.2.

What was New in 3.4.1

There were no modifications to the Light V2 Proxy in conjunction with O.S. Release 3.4.1.

What was New in 3.4.0

The following color conversion functions have been modified in 3.4.0. The gamut parameter now receives a new valid string of: "custom”. See the links below for more information.

RGB functions: - ColorRGBtoXY - ColorXYtoRGB

HSV functions: - ColorHSVtoXY - ColorXYtoHSV

What was New in 3.3.2

Capabilities that have been Added

A new feature has been delivered in O.S. 3.3.2 which allows dealers and customers to specify how a light's brightness behaves when the light is turned on. The functionality includes:

Preset - Light turns on to a preset level.
Previous - Light turns on to the previous light level.
Default On - Provided for backwards compatibility and is the same as setting Preset to On.

Driver developers must opt-in to this new feature and which parts it wants to support via the following new capabilities:

brightness_on_mode_preset has been included to enable the brightness presets for "On Mode" behavior for a light.

brightness_on_mode_previous has been included to enable the Previous On "On Mode" brightness behavior for a light.

A new feature was created to allow dealers and customers to specify how a light's color behaves when a light is turned on. The functionality includes:

Color Fade - Color behavior such as Dim to Warm
Preset - Color changes to a preset.
Previous - Color changes to the previous color value.
Default On - Provided for backwards compatibility and is the same as setting Preset to On.

Driver developers must opt-in to this new feature and which parts it wants to support via the following new capabilities:

color_on_mode_fade has been included to enable the Fade On "On Mode" behavior, such as Dim to Warm, for a light.

color_on_mode_preset has been included to enable presets for use with "On Mode" behavior for a light.

color_on_mode_previous has been included to enable the Previous On "On Mode" behavior for a light.

Additionally, the following new capabilities have been included in 3.3.2:

A new capability: brightness_rate_max has been included in support of drivers without buttons. This capability allows these driver to no longer need to define click and hold maximum rates.

A new capability: brightness_rate_min has been included in support of drivers without buttons. This capability allows these driver to no longer need to define click and hold minimum rates.

A new capability: supports_brightness_stop has been included if a light brightness transition can be stopped during a ramp.

Capabilities that have been Deprecated

fixed_ramp_rate - Use click_rate_min and click_rate_max instead.

has_fixed_ramp_rate - Use click_rate_min and click_rate_max instead.

num_buttons

ramp_level

min_max

on_off

buttons_are_virtual

Commands that have been Added

Note: Enforcement of valid minimum and maximum values for many Light v2 commands are being enforced in conjunction with 3.3.2.

A new command: ADD_DRIVER_COLOR_PRESET has been included to add a new driver specific color preset.

A new command: DELETE_DRIVER_COLOR_PRESET has been added to remove a driver configured color preset.

A new command: DYNAMIC_OFF has been added to support UIs with an off command to pair with the DYNAMIC_ON command.

A new command: DYNAMIC_ON has been added to allows UI's and programming to "turn on" a light involving both brightness and color in a single command

A new command MODIFY_DRIVER_COLOR_PRESET has been included to change an existing driver color preset.

A new command SET_BRIGHTNESS_STOP has been added to stop a ramp if in progress.

A new command SET_COLOR_STOP has been added to stops a ramp of color if in progress.

A new command SET_BRIGHTNESS_ON_MODE has been added to maintain the On preset value.

A new command SET_BRIGHTNESS_RATE_DEFAULT has been added. This command is used in conjunction with generic On/Off commands to retrieve the UPDATE_BRIGHTNESS_RATE_DEFAULT value.

A new command SET_COLOR_ON_MODE has beed added define color on mode.

A new command SET_COLOR_RATE_DEFAULT has been added. This command is used in conjunction with generic On/Off commands to retrieve the UPDATE_COLOR_RATE_DEFAULT value.

A new command UPDATE_BRIGHTNESS_ON_MODE has been added to obtain how a light should turn on with regards to brightness.

A new command UPDATE_BRIGHTNESS_RATE_DEFAULT has been added to provide a default value when a rate change is not provided.

A new command UPDATE_BRIGHTNESS_PRESET has beeb added to send a command when a press is changed.

A new command UPDATE_COLOR_ON_MODE has been added to obtain how a light should turn on with regards to color.

A new command UPDATE_COLOR_PRESET has been added to manage On and Dim values across various brands and models of lights.

A new command UPDATE_COLOR_RATE_DEFAULT has been added. This command is used in conjunction with generic On/Off commands to update the color rate default value.

Commands that have been Modified

The SET_COLOR_TARGET command has been enhanced with new parameters to support hue, saturation and presets. Additionally, this command previously included a parameter of RATE. This parameter name has changed to LIGHT_COLOR_TARGET_RATE.

Commands that have been Deprecated

GET_LIGHT_LEVEL

GET_CONNECTED_STATE

GET_PROPERTIES

Conditionals that have been Added

IS_BRIGHTNESS

IS_BRIGHTNESS_TARGET

IS_COLOR_TARGET

Notifications that have been Modified

The LIGHT_BRIGHTNESS_CHANGING notify has been modified to include two new optional parameters: LIGHT_BRIGHTNESS_CURRENT_PRESET_ID and LIGHT_BRIGHTNESS_TARGET_PRESET_ID.

The LIGHT_COLOR_CHANGING notify has been modified to include parameters for Preset IDs. Additionally, this notify previously included a parameter of RATE. This parameter name has changed to LIGHT_COLOR_TARGET_RATE.

The LIGHT_COLOR_CHANGED notify has been modified to include a parameter for a Preset ID.

Variables that have been Added

Brightness Target Ramp Rate in Milliseconds

Brightness Target Rate Remaining in Milliseconds

Variables that have been Deprecated

PRESET_LEVEL has been deprecated as the brightness_on_mode_preset capability contains this value.

Known Issue(s)

Color Lighting Control may not Work on Some Drivers

Currently, there is a known problem with color control not working on drivers that are looking for a RATE parameter in the SET_COLOR_TARGET command. The RATE parameter was not correctly implemented due to the limits of support for color rate ramping in previous versions. We are finalizing the changes to make this fully work in 3.3.2. As a result, the “RATE” parameter name has been changed to “LIGHT_COLOR_TARGET_RATE”.

Button Link Binding for Brightness Stop Functionality not Working

A defect in 3.3.2 prevents keypad buttons bound to the Proxy’s BUTTON_LINK binding for Brightness Stop from working. This will be resolved in 3.3.3.

What was New in 3.3.1

The capability: color_trace_tolerance has been modified to accept a Delta value of > .01. When provided, the CIELa*b* tolerance formula is used to determining if a color is the as another color in the system.

The following Conversion Commands have been enhanced to include an optional parameter: gamut. This parameter allows for the specification of a gamut type for use in the conversions.

What was New in 3.3.0

Light Proxy Color Enhancements

This release of the 3.3.0 beta Proxy and Protocol Guide has been delivered to support the Light Proxy’s new color management functionality. This includes:

Capabilities

color_correlated_temperature_max

color_correlated_temperature_min

color_rate_behavior

color_rate_max

color_rate_min

color_trace_tolerance

supports_color

supports_color_correlated_temperature

Commands

SET_COLOR_TARGET

Conversion Commands

This section lists the Commands used for converting to/from hue, saturation and lightness (HSV) and red, blue and green (RGB).

Extras

New supporting documentation.

Advanced Lighting Scene Agent

New supporting documentation.

Light Driver Development Best Practices

A new section has been added to the Light V2 proxy content including best practice recommendations for light driver developers.

What was New in 3.2.3

There were no modifications to the Light V2 Proxy in conjunction with O.S. Release 3.2.3.

What was New in 3.2.2

There were no modifications to the Light V2 Proxy in conjunction with O.S. Release 3.2.2.

What was New in 3.2.1

There were no modifications to the Light V2 Proxy in conjunction with O.S. Release 3.2.1.

What was New in 3.2.0

There were no modifications to the Light V2 Proxy in conjunction with O.S. Release 3.2.0.

What was New in 3.1.2

There were no modifications to the Light V2 Proxy in conjunction with O.S. Release 3.1.2.

What was New in 3.1.0

Sample Driver

light sample.c4i - A sample driver has been included to assist with better understanding the basic flow of commands from the Light Proxy as well as receiving protocol notifications. The driver can be found in the Samples directory under the root level of the DriverWorks SDK.zip file

What was New in O.S.3

LightV2 Proxy has been significantly enhanced in this release. It is recommended that Light Driver writers thoroughly review the Proxy content in this release. The changes included not only impact drivers written against OS 3. Previously delivered Light Proxy elements have been modified or in some cases deprecated.

In OS 3, the proxy has been conceptually split into two components. The first being a Wall Control/Keypad portion and the second is a redesigned Light portion.The Light portion has been developed as a Bulb Library. The ultimate goal of the Bulb Library is to support ,more versatility for drivers to interrogate, group, control and manage individual drivers and bulbs. Bulb color, target level, minimum and maximum levels, cold start timing and other features are implemented in the Bulb Library. Dynamic Capabilities have also been added to the Light Portion. Note that all changes maintain backwards compatibility for driver side interaction. However, Navigators will have functionality deprecated due to performance reasons or improved ways of communicating with the driver.

Light V2 Capabilities

brightness_rate_max

Minimum color rate, in milliseconds, supported for transitioning from one brightness to another. Should always be set for any color light driver, even if the transition rate is unchangeable. Allows dealers to configure the maximum rate that can be configured by dealers. The brightness_rate value is used by voice control, navigators, customer created advanced lighting scenes, and various other areas of the system that previously didn't allow customization of the transition rate.

Dealers can set the values for this in ComposerPro Properties.

Signature

<brightness_rate_max></brightness_rate_max>

Type

Integer. Defaults to UNIT16_MAX. Valid values fall between 0 and 4294967295.

Dynamic Capability

Yes

Example

<capabilities>
    <brightness_rate_max>4294967295</brightness_rate_max>
</capabilities>

brightness_rate_min

Minimum color rate, in milliseconds, supported for transitioning from one brightness to another. Should always be set for any color light driver, even if the transition rate is unchangeable. Allows dealers to configure the minimum rate that can be configured by dealers. The brightness_rate value is used by voice control, navigators, customer created advanced lighting scenes, and various other areas of the system that previously didn't allow customization of the transition rate.

Example

<capabilities>
    <brightness_on_mode_preset>true</brightness_on_mode_preset>
</capabilities>

brightness_on_mode_previous

Used to enable the Previous On "On Mode" behavior for a light. The 3.3.2 and newer proxies track the last brightness non-zero level reported by a driver before a BRIGHTNESS_CHANGED notification occurs with a level of 0. When the proxy gets a generic On (aka Dynamic On) then the proxy will send a SET_BRIGHTNESS_TARGET command with that last reported non-zero brightness level. The proxy will also update the PREVIOUS brightness preset value with the last non 0 brightness level anytime the proxy gets a BRIGHTNESS_CHANGED notify of a value of 0.

Additionally if drivers get a command to turn on that did not come from the proxy, the driver can check the brightness PREVIOUS preset value to know what level it should turn on to.

Signature

<brightness_on_mode_previous></brightness_on_mode_ previous>

Type

Boolean. Defaults to false

Dynamic Capability

Example

<capabilities>
    <brightness_on_mode_previous>true</brightness_on_mode_previous>
</capabilities>

color_on_mode_fade

Used to enable the Fade On "On Mode" behavior, such as Dim to Warm, so that the lights color is based on the current brightness of a light.

Dealers are allowed to pick two colors when in this mode. The Dim color a dealer picks is the color of the light at a 1% brightness and a second On color a dealer picks is the color of the light at 100% brightness. If a customer picks 50% brightness, the color the light shows should be an equal mix of the Dim color and On color. This "color mix" can easily be calculated by the following equation:

colorFinal.x = colorDim.x + (colorOn.x - colorDim.x) brightness.01

colorFinal.y = colorDim.y + (colorOn.y - colorDim.y) brightness.01

As a driver receives a new SET_BRIGHTNESS_TARGET command then the driver should use this formula and always set a new color on their light even if it does not receive a SET_COLOR_TARGET command.

Driver developers will notice that when a light is normally turned on from UI's, they will not get a SET_COLOR_TARGET when in this mode. If a driver does get a SET_COLOR_TARGET command, such as from a scene, composer programming, or other scenario then the driver should go to that color even while in Fade mode. If the driver gets any future SET_BRIGHTNESS_TARGET then the driver should again apply the color formula.

Signature

<color_on_mode_fade></color_on_mode_fade>

Type

Boolean. Defaults to false.

Dynamic Capability

Example

<capabilities>
    <color_on_mode_fade>true</color_on_mode_fade>
</capabilities>

color_on_mode_preset

Used to enable generic color presets to be used with the "On Mode" behavior. If a driver supports this capability, it is up to the driver to support additional parameter handling and reporting.

See SET_COLOR_TARGET, COLOR_CHANGING and COLOR_CHANGED commands and notifies and look for optional parameters such as:

LIGHT_COLOR_TARGET_PRESET_ID
LIGHT_COLOR_TARGET_PRESET_ORIGIN
LIGHT_COLOR_CURRENT_PRESET_ID
LIGHT_COLOR_CURRENT_PRESET_ORIGIN

Additionally, drivers need to implement UPDATE_COLOR_ON_MODE and UPDATE_COLOR_PRESET commands so they can track values for situations where the proxy is not the initiator of light behavior, such as On Mode Fade, scenes, composer programming, etc.

Signature

<color_on_mode_preset></color_on_mode_preset>

Type

Boolean. Defaults to false.

Dynamic Capability

Example

<capabilities>
    <color_on_mode_preset>true</color_on_mode_preset>
</capabilities>

color_on_mode_previous

Used to enable the Previous Color On "On Mode" behavior for a light. The 3.3.2 and newer proxies track the last color reported by a driver before a BRIGHTNESS_CHANGED notification occurs with a level of 0. When the proxy gets a generic On (aka Dynamic On) then the proxy will send a SET_COLOR_TARGET command with that last reported color before the brightness went to 0. The proxy will also update the PREVIOUS color preset value with the last color prior to the proxy receiving a BRIGHTNESS_CHANGED notify of a value of 0.

Additionally if drivers get a command to turn on that did not come from the proxy, the driver can check the PREVIOUS color preset value to know what color it should turn on to.

Signature

<color_on_mode_previous></color_on_mode_previous>

Type

Boolean. Defaults to false.

Dynamic Capability

Example

<capabilities>
    <color_on_mode_previous>true</color_on_mode_previous>
</capabilities>

cold_start

Ramping API indicating if the lighting hardware supports cold start. Defaults to false. In conjunction with O.S. release 3.4.2, this capability was modified to be a Dynamic Capability. This change has no impact on existing drivers using the cold_start capability. Going forward a driver can now change this capability if needed.

Available from 3.4.2.

Signature

<cold_start></<cold_start>

Type

Boolean

Dynamic Capability

Yes

Example

<capabilities>
    <cold_start>true</cold_start>
</capabilities>

-- The following command can be sued to dynamically change the cold_start capability:

C4:SendToProxy(PROXY_ID, 'DYNAMIC_CAPABILITIES_CHANGED', { cold_start = gColdStartEnabled }, "NOTIFY", true)

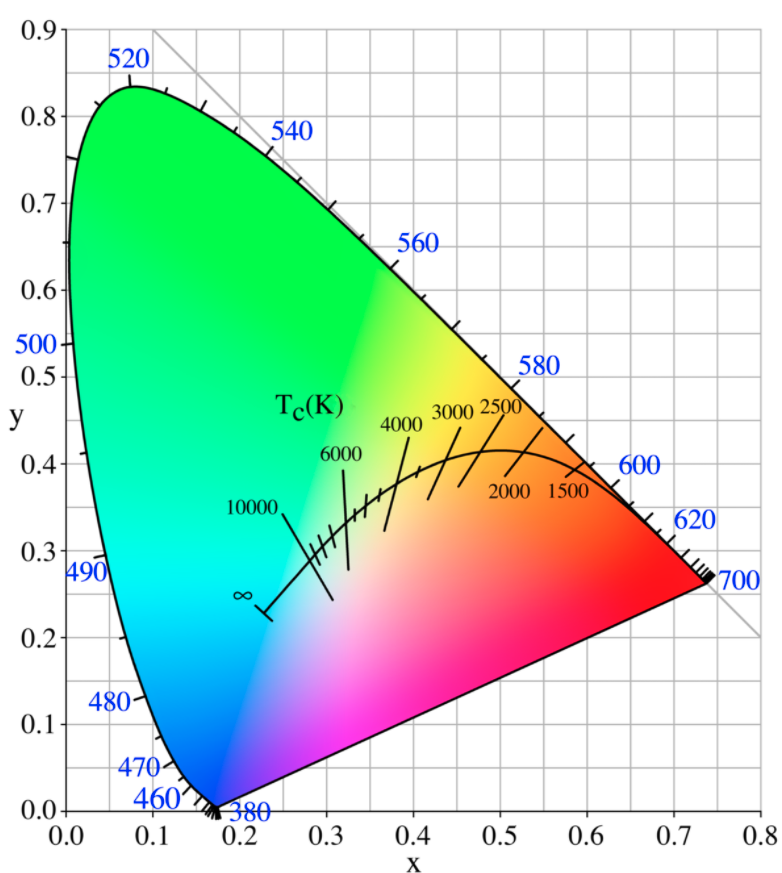

color_correlated_temperature_max

Maximum CCT (aka Kelvin) degrees supported by the driver.

Signature

<color_correlated_temperature_max></color_correlated_temperature_max>

Type

Integer: Defaults to 20000.

Dynamic Capability

Yes

Example

<capabilities>
    <color_correlated_temperature_max>20000</color_correlated_temperature_max>
</capabilities>

color_correlated_temperature_min

Minimum CCT (aka Kelvin) degrees supported by the driver.

Signature

<color_correlated_temperature_min></color_correlated_temperature_min>

Type

Integer: Defaults to 1000.

Dynamic Capability

Yes

Example

<capabilities>
    <color_correlated_temperature_min>1000</color_correlated_temperature_min>
</capabilities>

color_rate_behavior

Supported color rate behaviors include:

0 - Unchangeable Rate. 1 - Device only supports one rate for brightness and color. 2 - Device supports ramping brightness and color at two different rates.

Signature

<color_rate_behavior></color_rate_behavior>

Type

Integer: Defaults to 0.

Dynamic Capability

Yes

Example

<capabilities>
    <color_rate_behavior>2</color_rate_behavior>
</capabilities>

color_rate_max

Maximum color rate, in milliseconds, supported for transitioning from one color to another. Should always be set for any color light driver, even if the transition rate is unchangeable. Allows dealers to configure the maximum rate that can be configured. The color_rate value is used by voice control, navigators, customer created advanced lighting scenes, and various other areas of the system that previously didn't allow customization of the transition rate.

Signature

<color_rate_max></color_rate_max>

Type

Integer: Defaults to 0.

Dynamic Capability

Yes

Example

<capabilities>
    <color_rate_max>200</color_rate_max>
</capabilities>

color_rate_min

Minimum color rate, in milliseconds, supported for transitioning from one color to another. Should always be set for any color light driver, even if the transition rate is unchangeable. Allows dealers to configure the maximum rate that can be configured. The color_rate value is used by voice control, navigators, customer created advanced lighting scenes, and various other areas of the system that previously didn't allow customization of the transition rate.

Signature

<color_rate_min></color_rate_min>

Type

Integer: Defaults to 0.

Dynamic Capability

Yes

Example

<capabilities>
    <color_rate_min>200</color_rate_min>
</capabilities>

disable_flash

This capability Indicates whether the driver supports Flash behavior. This capability is useful with regard to Flash functionality being offered in the Advanced Lighting Scenes Composer Pro UI. By default, this capability is set to false. Setting this to true will allow Flash functionality to be configured in Composer Pro.

Available from 3.4.2.

Signature

<disbale_flash></disbale_flash>

Type

bool

Dynamic Capability

Example

<capabilities>
    <disbale_flash>true</disbale_flash>
</capabilities>

Type

Boolean

Dynamic Capability

Example

<capabilities>
    <click_rates>false</click_rates>
</capabilities>

click_rate_min

Ramping API that determines the minimum length of time (in milliseconds) that can be set for Click Rate of a keypad button press. This is also used for minimum time of ramp rate range for Composer Programming. Defaults to 0.

Signature

<click_rate_min></<click_rate_min>

Type

Integer

Dynamic Capability

Example

<capabilities>
    <click_rate_min>0</click_rate_min>
</capabilities>

click_rate_max

Ramping API that determines the maximum length of time (in milliseconds) that can be set for Click Rate of a keypad button press. Defaults to 1.

Signature

<click_rate_max></<click_rate_max>

Type

Integer

Dynamic Capability

Example

<capabilities>
    <click_rate_max>1</click_rate_max>
</capabilities>

color_trace_tolerance

Some color lighting hardware or communication protocols lack enough bits or precision to set all possible colors, especially if using 8 bit Mired, RGB, or HSV values. This capability adjusts the CIELa*b* Delta comparison value to allow drivers to increase or reduce the color comparison area to work around rounding issues in devices and/or communication. Most people can visually detect a color difference with a Delta of 3.0 or higher. Control4 has chosen a default Delta of 1.0 as this should be sufficient for most hardware and protocols.

This Delta value is used by the system to determine if two colors are close enough to be considered "the same". This tolerance check is used by Advanced Lighting Scenes, Composer Programming, and other areas.

Boolean

Dynamic Capability

Example

<capabilities>
    <hold_rates>false</hold_rates>
</capabilities>

hold_rate_min

Ramping API that determines Minimum length of time (in milliseconds) that can be set for Hold Rate of a keypad button press. Defaults to 1000.

Signature

<hold_rate_min></<hold_rate_min>

Type

Integer

Dynamic Capability

Example

<capabilities>
    <hold_rate_min>1000</hold_rate_min>
</capabilities>

hold_rate_max

Ramping API that determines the maximum length of time (in milliseconds) that can be set for Hold Rate of a keypad button press Also used for the maximum time of ramp rate range for Composer Programming. Defaults to 86400000.

Signature

<hold_rate_max></<hold_rate_max>

Type

Integer

Dynamic Capability

Example

<capabilities>
    <hold_rate_max>86400000</hold_rate_max>
</capabilities>

load_group_support

Load Group capability Indicating if the light can participate in load groups and the driver follows all Load Group API requirements. Defaults to false.

Signature

<load_group_support></load_group_support>

Type

Boolean

Dynamic Capability

Example

<capabilities>
    <load_group_support>false</load_group_support>
</capabilities>

hide_proxy_events

Composer capability that determines whether the proxy’s Events (brightness, color changes and buttons events) should appear in Composer Programming. Defaults to false.

Signature

<hide_proxy_events></hide_proxy_events>

Type

Boolean

Dynamic Capability

Example

<capabilities>
    <hide_proxy_events>false</hide_proxy_events>
</capabilities>

has_button_events

Composer capability that determines whether the driver has button events that should appear in Composer programming. Defaults to false.

Signature

<has_button_events></has_button_events>

Type

Boolean

Dynamic Capability

Example

<capabilities>
    <has_button_events>false</has_button_events>
</capabilities>

has_leds

Keypad capability that determines whether the properties appear in Composer to allow the dealer to set LED colors of keypad buttons. Defaults to false.

Signature

<has_leds></has_leds>

Type

Boolean

Dynamic Capability

Example

<capabilities>
    <has_leds>false</has_leds>
</capabilities>

multi_click

This capability implements ability to disable multi-click events/actions for a light driver. This is useful when it is desirable to disable the use of press, release, single, double or triple click programming in Composer Pro. This capability defaults to true.

Available from 3.4.2.

Signature

<multi_click></multi_click>

Type

Boolean: Defaults to true.

Dynamic Capability

Example

<capabilities>
  <multi_click>true</multi_click>
</capabilities>

supports_brightness_stop

Used to indicate if a light brightness transition can be stopped during a ramp. Drivers that support Daylight Agent benefit from implementing this as the Daylight scenario can be stopped without having to force a light to go to a different brightness or color to end tracking. Reduced ALS support drivers should implement this capability so that ramping scenes works correctly.

*Note, a bug in 3.3.2 prevents keypad buttons bound to the proxies BUTTON_LINK for Brightness Stop from working. This will be resolved in 3.3.3.

Signature

<supports_brightness_stop></supports _brightness_stop>

Type

Boolean: Defaults to false.

Dynamic Capability

Yes

Example

<capabilities>
    <supports_color>false</supports_color>
</capabilities>

Usage Note

If changing the supports_color or supports_color_correlated_temperature capabilities via the Dynamic Capabilities Notify, these should both be done in a single notification. If only one is disabled/enabled at a time, device color presets such as the On or Dim colors may have their color mode changed between Full Color and CCT automatically.

For example, if the presets mode were CCT and a driver on director startup dynamically enabled just supports_color the proxy would detect that CCT is not supported and change any existing presets to color mode Full Color.

supports_color

Whether the device can show a broad range of colors. Set to False and use "supports_color_predefined" if the driver can only reproduce a limited number of colors, such as devices that only use enums to communicate or hardware with a limited table of factory configured colors.

Signature

<supports_color></supports_color>

Type

Boolean: Defaults to false.

Dynamic Capability

Yes

Example

<capabilities>
    <supports_color>false</supports_color>
</capabilities>

Usage Note

supports_color_correlated_temperature

Wh Whether the device has native support for color correlated temperature reporting in Kelvin. Set this capability to False if the driver can only do predefined color temperatures. If enabled via dynamic capability, it will be necessary to Notify the proxy of the current color immediately after the capability is enabled.

Signature

<supports_color_correlated_temperature></supports_color_correlated_temperature>

Type

Boolean: Defaults to false.

Dynamic Capability

Yes

Example

<capabilities>
  <supports_color_correlated_temperature>false<supports_color_correlated_temperature>
</capabilities>

Usage Note

Note: If changing the supports_color or supports_color_correlated_temperature capabilities via the Dynamic Capabilities Notify, these should both be done in a single notification. If only one is disabled/enabled at a time, device color presets such as the On or Dim colors)may have their color mode changed between Full Color and CCT automatically.

For example, if the presets mode were Full Color and a driver on director startup dynamically enabled just supports_color_correlated_temperature then the proxy would detect that Full Color is not supported and change any existing presets to color mode CCT.

supports_default_on

Note: Deprecating - Drivers should not use this capability but instead use the brightness on mode preset capability Drivers that enable both will experience oddities in Composer dealer configuration.

This feature is for lights that support a default ON brightness in their firmware. When enabled, the Light Proxy sends a SET_PRESET_LEVEL command to drivers when the brightness "On” preset is updated in the proxy through Composer or the PRESET_LEVEL system variable. This enables light switches that respond to local button presses to go to the same default ON level as what the Control4 system uses when a light is turned on or toggled via Navigators, Composer Programming, and keypad buttons.

Signature

<supports_default_on></supports_default_on>

Type

Boolean: Defaults to false.

Dynamic Capability

Example

<capabilities>
  <supports_default_on>false<supports_default_on>
</capabilities>

advanced_scene_support

Whether the device supports the full Advanced Lighting Scenes driver commands and API's.

Signature

<advanced_scene_support></advanced_scene_support>

Type

Boolean: Defaults to false.

Dynamic Capability

Example

<capabilities>
  <advanced_scene_support>false</advanced_scene_support>
</capabilities>

reduced_als_support

If the advanced_scene_support capability is false, a driver can use this reduced_als_support capability for Advanced Lighting Scene support. The device will be allowed into a scene, but the device can't participate in scene ramping and can only have either 0 or 1 elements in a scene.

Signature

<reduced_als_support></reduced_als_support>

Type

Boolean: Defaults to false.

Dynamic Capability

Example

<capabilities>
  <reduced_als_support>false</reduced_als_support>
</capabilities>

supports_broadcast_scenes

Whether the device supports broadcasts. This includes Zigbee, ZWave, UDP.

Signature

<supports_broadcast_scenes></supports_broadcast_scenes>

Type

Boolean: Defaults to false.

Dynamic Capability

Example

<capabilities>
  <supports_broadcast_scenes>false</supports_broadcast_scenes>
</capabilities>

supports_multichannel_scenes

Causes the LightV2 proxy to send the "EXECUTE_SCENE" command to the device rather than a set level command.

Signature

<supports_multichannel_scenes></supports_multichannel_scenes>

Type

Boolean: Defaults to false.

Dynamic Capability

Example

<capabilities>
  <supports_multichannel_scenes>false</supports_multichannel_scenes>
</capabilities>

hide_proxy_properties

Whether to show all proxy properties in composer. This is primarily only used for extremely limited hardware that can't ramp or do much else except turn on and off.

Signature

<hide_proxy_properties></hide_proxy_properties>

Type

Boolean: Defaults to false.

Dynamic Capability

Example

<capabilities>
  <hide_proxy_properties>false</hide_proxy_properties>
</capabilities>

nesting_driver_is_parent

This capability is applicable to drivers where supporting drivers are required for the one device. This capability makes it easier to understand what drivers are associated with each other. This specific capability indicates whether or not this driver is dependent on other drivers. When used correctly, it will setup the dependent driver(s) to be nested under the primary (parent) driver in Composer Pro.

Available from 3.4.2.

Signature

<nesting_driver_is_parent></nesting_driver_is_parent>

Type

Boolean: Defaults to false.

Dynamic Capability

Usage Note

The following variable must be added and configured to use this capability:

VAR_C4_NESTING_PARENTS_CHILD_DEVICES - Set this variable to a comma delimited list of ID values for the secondary device(s) required by the parent driver. This list represents the drivers that will be nested under the parent driver in Composer Pro. This is the associated driver(s) with the nested_driver_is_child capability set to true.

Example

<capabilities>
  <nesting_driver_is_parent>false</nesting_driver_is_parent>
</capabilities>

nested_driver_is_child

This capability is applicable to light drivers where multiple light drivers are added for one light device. These capabilities make it easier to understand what drivers are associated with each other. This specific capability indicates whether or not this driver is a dependent driver required by primary light driver for use. When used correctly, it will setup the dependent driver(s) to be nested under the primary driver in Composer Pro.

Available from 3.4.2.

Signature

<nested_driver_is_child></nested_driver_is_child>

Type

Boolean: Defaults to false.

Dynamic Capability

Usage Note

The following variable must be added and configured to use this capability:

VAR_C4_NESTED_CHILDS_PARENT_DEVICE - Set the variable to the ID of primary driver requiring its use. This is the associated driver with the nesting_driver_is_parent capability set to true.

Example

<capabilities>
  <nested_driver_is_child>false</nested_driver_is_child>
</capabilities>

Light V2 Commands

This section lists the Commands (Bound Call, aka SendToDevice in Lua) that the Light V2 proxy supports. These are for use by Navigators, Composer Programming and other services like Voice Control. The thing to remember with proxies is that many of the commands are passed on to the protocol, and it is the protocol drivers responsibility to ripple the commands result back up to the proxy using a 'Notify' command. This allows the protocol to optionally make slight adjustments to commands for its unique driver or hardware, and then inform the proxy of the change.

BUTTON_ACTION

Used to perform a button action on the device via BUTTON_LINK bindings. This is useful if you want to do user dependent hold/release functionality in a driver or hardware. Proxy will create and maintain the consumer binding connections for TOP, BOTTOM and TOGGLE lightV2 buttons and their BUTTON_LINK bindings. When the proxy gets a BUTTON_ACTION command over one of the three binding connections, it will forward the command to the driver. The driver needs to send a BUTTON_ACTION Notify back to the proxy with the same BUTTON_ID and ACTION params and values so the proxy knows the command was successful and that the driver or hardware is tracking that the button is currently in a Pressed state. _

If a driver does not do send the Notify that a button is Pressed to the proxy, an additional (second) Press command will be auto-generated by the proxy and sent to the driver if the proxy receives a Click and has not been notified that the drivers button is in a Pressed state.

Name

BUTTON_ACTION ()

Parameter	Type	Description
BUTTON ID	NUM	ID for the button:
		0 - Top
		1 - Bottom
		2 - Toggle
ACTION	NUM	ACTION :
		0 - RELEASE (HOLD)
		1 - PRESS
		2 - RELEASE (CLICK)

Name

DELETE_DRIVER_COLOR_PRESET ()

Parameter	Type	Description
PRESET ID	NUM	Set to the ID of the preset to be removed.

Returns

On return, "deleteResult" will contain an XML string that indicates a success or failure state. If the XML indicates failure, a failure message will be included.

Sample success message:

<return_data><success>true</success></return_data>

Sample failure message:

<return_data><success>false</success><reason>Not found</reason></return_data>

Example

The example code below will remove a Preset with an ID of 3.

local deleteResult = C4:SendUIRequest(proxyDeviceId, "DELETE_DRIVER_COLOR_PRESET", { PRESET_ID = 3 } )

SET_BRIGHTNESS_TARGET

Used to set the target brightness of where the light is being requested to go. Parameters are determined by the enabling/disabling of the supports_target capability. See below for more information.

Name

SET_BRIGHTNESS_TARGET ()

If the supports_target capability is enabled or color is used:

Parameter	Type	Description
LIGHT BRIGHTNESS TARGET	FLOAT	Value as defined from drivers Min and Max brightness capabilities as set by the driver. If the brightness resolution capability is set to 10, .5, .01, and so on, the proxy will ensure the value sent to the driver meets the resolution/step capability. If no resolution is set, the value of 1 is used for stepping.
RATE	UINT	Milliseconds for the ramp duration. This is guaranteed to be between the Min and Max rate if the driver sets these.

Note: If a driver supports On Modes, it should track the following parameters: LIGHT_BRIGHTNESS_TARGET_PRESET_ID - The ID of the preset to trigger.

If the supports_target capability is disabled in instances such as pre- O.S. 3.3.0 for backward compatibility of older drivers:

Parameter	Type	Description
LEVEL	INT	LEVEL : from 0-100.
LEVEL	INT	TIME: Milliseconds for the ramp.

Returns

None

SET_COLD_START_LEVEL

Used to set the cold start level for the device for drivers that support hardware based Cold Start behavior.

Name

SET_COLD_START_LEVEL ()

Parameter	Type	Description
LEVEL	INT	LEVEL: 0 - 100

Returns

None

SET_COLD_START_TIME

Used to set the cold start level for the device for drivers that support hardware based Cold Start behavior.

Name

SET_COLD_START_TIME ()

Parameter	Type	Description
TIME	INT	TIME in milliseconds

Returns

None

SET_MAX_ON_LEVEL

Used to set the maximum on level for the device

Name

SET_MIN_ON_LEVEL ()

Parameter	Type	Description
LEVEL	INT	LEVEL: 0 - 100

Returns

None

SET_MIN_ON_LEVEL

Used to set the minimum on level for the device

Name

SET_MIN_ON_LEVEL ()

Parameter	Description	Description
LEVEL	INT	LEVEL: 0 - 100

Returns

None

SET_PRESET_LEVEL

Used to set brightness of the "On" Preset that is used when a user clicks the Top button of a light.

Name

SET_PRESET_LEVEL ()

Parameter	Type	Description
LEVEL	LINT	LEVEL: 0 - 100

Name

SET_CLICK_RATE_DOWN ()

Parameter	Type	Description
RATE	INT	RATE in milliseconds

Returns

None

SET_CLICK_RATE_UP

Used to set the click rate up for the device.

Name

SET_CLICK_RATE_UP ()

Parameter	Type	Description
RATE	INT	RATE in milliseconds

Returns

None

SET_COLOR_ON_MODE

Sets the on mode color.

Name

SET_COLOR_ON_MODE ()

Parameter	Type	Description
PRESET ID	INT	PRESET ID that a light should turn on to.

When this value is changed, drivers will receive a protocol driver command of UPDATE_COLOR_RATE_DEFAULT with a parameter RATE of the value.

Name

SET_COLOR_RATE_DEFAULT ()

Parameter	Type	Description
LIGHT COLOR RATE DEFAULT.	INT	Default rate that will be used if no rate is specified.

Name

SET_COLOR_TARGET()

If a driver implements On Mode functionality:

Parameter	Type	Description
LIGHT COLOR TARGET PRESET ID	INT	The ID of the preset to trigger. This must be sent with the LIGHT COLOR TARGET PRESET ORIGIN parameter.
LIGHT\COLOR TARGET RESET ORIGIN	NUM	The origin of the preset to trigger. 1 = Device specific preset. 2 = Color Agent preset.

Returns

None

SET_HOLD_RATE_UP

Used to set the hold rate up for the device.

Name

SET_HOLD_RATE_UP ()

Parameter	Type	Description
RATE	INT	RATE in milliseconds

Returns

None

SET_HOLD_RATE_DOWN

Used to set the hold rate down for the device.

Name

SET_HOLD_RATE_DOWN ()

Parameter	Type	Description
RATE	INT	RATE in milliseconds

Returns

None

SET_BUTTON_COLOR

Used to set the color for a particular button for when the light is on/off

Name

SET_BUTTON_COLOR ()

Parameter	Type	Description
Number	NUM	BUTTON ID
ON COLOR	hex STR	Optional. 6 character hex string, representing an RGB value.
OFF COLOR	hex STR	Optional. 6 character hex string, representing an RGB value.

Returns

None

SET_ALL_LED

Used to set the LED color of all the buttons on the device to one color (both on/off colors).

Name

SET_ALL_LED ()

Parameter	Type	Description
COLOR	hex STR	COLOR: 6 character hex string, representing an RGB value.

Returns

None

JOIN_GROUP

Received when the driver is added to a Load Group.

Name

JOIN_GROUP ()

Parameter	Type	Description
GROUP ID	STR	Device ID of the Load Group driver
KEEP SYNC	STR	1 for True and 0 for False

Returns

None

LEAVE_GROUP

Received when Load Group driver pop the light driver from the group.

Name

LEAVE_GROUP

Parameter	Type	Description
GROUP ID	STR	GROUP ID Driver ID of the Load Group

Returns

None

MODIFY_DRIVER_COLOR_PRESET

Used to modify an existing driver specific color preset. The PRESET_ID is required, and other parameters may be required depending on what you are using the call for. The guidelines for which parameters are required are defined below in the parameter section.

Name

MODIFY_DRIVER_COLOR_PRESET ()

Parameter Guidelines

If the preset name is being changed, the PRESET_NAME parameter is required, otherwise it is optional. When the preset name is the only thing being changed, no color information is required.

If the color is being set using hue and saturation, the PRESET_COLOR_HUE, PRESET_COLOR_SATURATION, and PRESET_COLOR_MODE are all required.

If the color is being set using XY, the PRESET_COLOR_X, PRESET_COLOR_Y, and PRESET_COLOR_MODE are all required.

If the color temperature is being set, only the PRESET_COLOR_CORRELATED_TEMPERATURE is required.

Parameter	Description
PRESET ID	The ID of the existing preset that will be modified.
PRESET NAME	Optional. The name to give to the preset that is being modified.
PRESET COLOR CORRELATED TEMPERATURE	Optional. The color temperature, in Kelvin, that the preset should be set to. If this parameter is used, the PRESET COLOR MODE will be set to 1 (CCT), and the PRESET COLOR MODE parameter does not need to be set.
Color Set 1	Requires 2+ parameters. PRESET COLOR X - The color x coordinate to be used in this preset. PRESET COLOR Y - The color y coordinate to be used in this preset. PRESET COLOR MODE - Optional. The color mode used by this preset. 0 = Full Color, 1 = CCT. Previous color mode is preserved if this parameter is not specified.
Color Set 2	Requires 2 parameters. This method is highly discouraged as it is confined to the sRGB gamut and thus can't achieve many colors that typical color lights support. PRESET COLOR HUE - The hue to use for this preset. Range of 0 through 359 degrees. PRESET COLOR SATURATION - The saturation to use for this preset. Range of 0 to 100. Either hue and saturation or XY must be used.

Returns

On return, the "modifyResult" value will contain an XML string that indicates if the modification was successful, or not. If the XML indicates failure, a failure message will be included.

Sample success message: <return_data><success>true</success></return_data>

Sample failure message: <return_data><success>false</success><reason>Not found</reason></return_data>

Example

The example code below will modify a Color Preset with an ID of 3.

local tParams = {PRESET_ID=3, PRESET_NAME="Modified Driver Color Preset", PRESET_COLOR_X=0.1550, PRESET_COLOR_Y=0.0822, PRESET_COLOR_MODE=0}

local modifyResult = C4:SendUIRequest(proxyDeviceId, "MODIFY_DRIVER_COLOR_PRESET", tParams)

SET_GROUP_SYNC

Received when Keep loads in sync property is changed. In case of checking the Keep loads in sync, GROUP_SET_LEVEL will be sent right before SET_GROUP_SYNC.

Name

Parameter	Type	Description
GROUP ID	STR	Driver ID of the Load Group driver
KEEP SYNC	STR	0 for False and 1 for True

Received

None

GET_SETUP

Command used to get the configuration of the device. It immediately returns a block of XML information to the caller. GET_SETUP is usually called just once by a UI entity to know how to setup the UI. This would report all capabilities that are in a driver as well as other proxy information including how many settings the device has and what the name of those settings are.

Name

GET_SETUP ()

Parameters

None

Returns

See example

Example

Example of current XML with color support enabled:

<?xml version="1.0" encoding="UTF-8"?>
<setup>
   <ONLINE_CHANGED>True</ONLINE_CHANGED>
   <MIN_ON_LEVEL>1</MIN_ON_LEVEL>
   <MAX_ON_LEVEL>100</MAX_ON_LEVEL>
   <COLD_START_LEVEL>1</COLD_START_LEVEL>
   <COLD_START_TIME>0</COLD_START_TIME>
   <CLICK_RATE_MIN>250</CLICK_RATE_MIN>
   <CLICK_RATE_MAX>86400000</CLICK_RATE_MAX>
   <HOLD_RATE_MIN>1000</HOLD_RATE_MIN>
   <HOLD_RATE_MAX>86400000</HOLD_RATE_MAX>
   <NUMBER_BUTTONS>3</NUMBER_BUTTONS>
   <BUTTON_LIST_INFO>
      <BUTTON_INFO>
         <NAME>Top</NAME>
         <BUTTON_ID>0</BUTTON_ID>
         <ON_COLOR>0000ff</ON_COLOR>
         <OFF_COLOR>000000</OFF_COLOR>
      </BUTTON_INFO>
      <BUTTON_INFO>
         <NAME>Bottom</NAME>
         <BUTTON_ID>1</BUTTON_ID>
         <ON_COLOR>000000</ON_COLOR>
         <OFF_COLOR>0000ff</OFF_COLOR>
      </BUTTON_INFO>
      <BUTTON_INFO>
         <NAME>Toggle</NAME>
         <BUTTON_ID>2</BUTTON_ID>
         <ON_COLOR>0000ff</ON_COLOR>
         <OFF_COLOR>000000</OFF_COLOR>
      </BUTTON_INFO>
   </BUTTON_LIST_INFO>
   <supports_target>True</supports_target>
   <has_extras>True</has_extras>
   <brightnesses minimum="0" maximum="100" resolution="1" unknown="-1">
      <level name="Off" level_setable="true" rate_setable="true" level="0" levelType="2" buttonLinkBindingId="0" activeColor="0000ff" inactiveColor="000000" activeText="Off Active" inactiveText="Off Not Active"/>
      <level name="On" level_setable="true" rate_setable="true" level="100" levelType="2" buttonLinkBindingId="0" activeColor="0000ff" inactiveColor="000000" activeText="On Active" inactiveText="On Not Active"/>
     </brightnesses>
   <supports_color>True</supports_color>
   <supports_color_correlated_temperature>False</supports_color_correlated_temperature>
   <colors color_correlated_temperature_min="500" color_correlated_temperature_max="20000">
      <color name="Energize" category="2" editable="0,1" color_x="0" color_y="0" color_mode="1" color_correlated_temperature="0" />
      <color name="Relax" category="2" editable="0,1" color_x="0" color_y="0" color_mode="1" color_correlated_temperature="0" />
      <color name="Read" category="2" editable="" color_x="0" color_y="0" color_mode="1" color_correlated_temperature="0" />
      <color name="Sunset" category="2" editable="" color_x="0" color_y="0" color_mode="1" color_correlated_temperature="0" />
      <color name="Nightlight" category="2" editable="" color_x="0" color_y="0" color_mode="1" color_correlated_temperature="0" />
      <color name="Red" category="2" editable="" color_x="0.640074" color_y="0.329971" color_mode="0" color_correlated_temperature="0" />
      <color name="Green" category="2" editable="" color_x="0.3" color_y="0.6" color_mode="0" color_correlated_temperature="0" />
      <color name="Blue" category="2" editable="" color_x="0.150017" color_y="0.0600066" color_mode="0" color_correlated_temperature="0" />
      <color name="Yellow" category="2" editable="" color_x="0.419321" color_y="0.505255" color_mode="0" color_correlated_temperature="0" />
      <color name="Orange" category="2" editable="" color_x="0.543608" color_y="0.406568" color_mode="0" color_correlated_temperature="0" />
      <color name="Off" category="1" editable="" color_x="0.313525" color_y="0.323627" color_mode="1" color_correlated_temperature="6500" buttonLinkBindingId="0" activeColor="0000ff" inactiveColor="000000" activeText="Off" inactiveText="Not Off"/>
      <color name="On" category="1" editable="" color_x="0.313525" color_y="0.323627" color_mode="1" color_correlated_temperature="6500" buttonLinkBindingId="0" activeColor="0000ff" inactiveColor="000000" activeText="On" inactiveText="Not On"/>
   </colors>
</setup>

GROUP_RAMP_TO_LEVEL

Received when group is ramping to level.

Name

GROUP_RAMP_TO_LEVEL ()

Parameter	Type	Description
GROUP ID	STR	Driver ID of the Load Group
LEVEL	STR	Level to ramp
TIME	STR	Time rate for ramping

Returns

None

SET_GROUP_LEVEL

Received when group is setting light level.

Name

GROUP_SET_LEVEL ()

Parameter	Type	Description
GROUP ID	STR	Driver ID of the Load Group
LEVEL	STR	Light level to be set on the Light driver

None

GROUP_START_RAMP

Received when group start hold ramp operation.

Name

GROUP_START_RAMP ()

Parameter	Type	Description
GROUP ID	STR	GROUP ID Driver ID of the Load Group
RAMP UP	STR	RAMP UP Value 1
RATE	STR	Rate time in ms

Returns

None

GROUP_STOP_RAMP

Received when group stop hold ramp.

Name

GROUP_STOP_RAMP ()

Parameter	Type	Description
GROUP ID	STR	Driver ID of the Load Group

Returns

None

UPDATE_BRIGHTNESS_ON_MODE

Drivers that set either brightness_on_mode_preset or brightness_on_mode_previous capabilities to true need to handle this command to know how the light should turn on. The proxy will handle Brightness related commands that go through it, but On behaviors that include BUTTON_LINK and other driver commands handled only in the driver should honor the On Mode.

Name

UPDATE_BRIGHTNESS_ON_MODE ()

Parameter	Type	Description
BRIGHTNESS PRESET ID	INT	Integer. Brightness preset ID that is to be used when the light turns on.
BRIGHTNESS PRESET LEVEL	DOUBLE	Double. Brightness Preset Level, this is provided as a convenience only as this value is provided for the preset in other proper calls.

Returns

None

UPDATE_BRIGHTNESS_RATE_DEFAULT

This is used by old(deprecated) generic On/Off commands, Navigators, and user created lighting scenes.

Name

UPDATE_BRIGHTNESS_RATE_DEFAULT ()

Parameter	Type	Description
RATE	INT	Milliseconds for the default rate that is used when a rate of change is not provided.

Returns

None

UPDATE_BRIGHTNESS_PRESET

The proxy will send a command to the driver when a Preset is changed. Drivers can ignore this command, or could react based on the data provided.

Some options for reacting to the command would be to update keypad load control firmware to turn a light On to the level that the light was turned off from.

Another reaction could be to adjust what light level the light will turn on to, such as interacting with the Daylight Agent.

Name

UPDATE_BRIGHTNESS_PRESET ()

Parameter	Type	Description
COMMAND	STR	String. This will be one of the following strings:
		ADDED, MODIFIED, REMOVED.
ID	NUM	Preset ID
NAME	STR	Name of the preset.
LEVEL	DOUBLE	Level for the preset.

Returns

None

UPDATE_COLOR_ON_MODE

Drivers that set either color_on_mode_preset, color_on_mode_previous, or color_on_mode_fade capabilities to true need to handle this command to know how the light should turn on. The proxy will handle Color related commands that go through it, but On behaviors that include BUTTON_LINK and other driver commands handled only in the driver should honor the On Mode.

For drivers that support Color Fade on mode, Dynamic On and some other commands will NOT send a SET_COLOR_TARGET. Drivers that are currently in the Color Fade on mode must adjust the color based on the brightness level when only brightness is sent. For more information see the Color Fade On Mode capability documentation.

Name

UPDATE_COLOR_ON_MODE ()

Parameter	Type	Description
COLOR PRESET ID	INT	Color preset ID that is to be used when the light turns on.
COLOR PRESET ORIGIN	INT	Color preset Origin that is to be used when the light turns on. 1 = Device Specific, 2 = Color Agent, 0 = Color fade not enabled.
COLOR\PRESET COLOR X	DOUBLE	This value is provided as a convenience and is redundant to other ways of getting the color information of the Color Preset.
COLOR PRESET COLOR Y	DOUBLE	This value is provided as a convenience and is redundant to other ways of getting the color information of the Color Preset.
COLOR PRESET COLOR MODE		This value is provided as a convenience and is redundant to other ways of getting the color information of the Color Preset.
COLOR FADE PRESET ID	INT	Color preset ID that is to be used when the light turns on.
COLOR FADE PRESET ORIGIN	INT	Color preset Origin that is to be used when the light turns on. 0 = Device Specific, 1 = Color Agent.
COLOR FADE PRESET COLOR X	DOUBLE	This value is provided as a convenience only and is secondary to other ways of getting the color information of the Fade Color Preset.
COLOR FADE PRESET COLOR Y	DOUBLE	DThis value is provided as a convenience only and is secondary to other ways of getting the color information of the Fade Color Preset.
COLOR FADE PRESET COLOR MODE		This value is provided as a convenience only and is secondary to other ways of getting the color information of the Fade Color Preset.

Returns

None

UPDATE_COLOR_RATE_DEFAULT

This is used by old(deprecated) generic On/Off commands, Navigators, and user created lighting scenes.

Name

UPDATE_COLOR_RATE_DEFAULT ()

Parameter	Type	Description
RATE	INT	Milliseconds for the default rate that is used when a rate of change is not provided.

Returns

None

UPDATE_BRIGHTNESS_PRESET

The proxy will send a command to the driver when a Preset is changed. Drivers can ignore this command, or could react based on the data provided.

Some options for reacting to the command would be to update keypad load control firmware to turn a light On to the level that the light was turned off from. Another reaction could be to adjust what light level the light will turn on to, such as interacting with the Daylight Agent

Name

UPDATE_BRIGHTNESS_PRESET ()

Parameter	Type	Description
COMMAND	STR	COMMAND: This will be one of the following strings: ADDED MODIFIED REMOVED.
PRESET ID	NUM	Preset ID
NAME	STR	NAME: Name of the preset
LEVEL	DOUBLE	LEVEL: Level for the preset

Returns

None

UPDATE_COLOR_PRESET

Having a mandatory On color preset for all colored lights, this provides dealers a way of configuring various brands and models of lights in a manner that a customer can have a consistent 'default on' color behavior for the lights in their homes. Without this feature, it's almost certain that different brands and models of lights would turn on to different colors or color temperatures.

In addition to the On color preset, having a mandatory Dim color preset for all colored lights provides dealers a way of configuring various brands and models of lights in a way that a customer can have a consistent 'warm dim' color behavior for the lights in their homes.

The 'On' color preset is the color that a light should generate at it's 'Default On Brightness' level.

The 'Dim' color preset is the color that a light should generate at 1% brightness.

For example, lets assume a lights Default On Brightness is set to 80%, the On preset color is 4000CCT, and the Dim preset color is 2000CCT. If the light was then set to a brightness level of 40%, the lights color would be 3000CCT. Also, if the lights brightness is set to 80% or higher, the color would always be 4000CCT.

This formula would be used when a light is turned on (from off level) via a SET_BRIGHTNESS_TARGET and if no SET_COLOR_TARGET is additionally used. Any further time that SET_BRIGHTNESS_TARGET is used, the driver should use the formula to calculate the new color and also set that color when the brightness is changed via SET_BRIGHTNESS_TARGET.

If a SET_COLOR_TARGET command is used, after the light has been turned on, then the formula for warm-dim functionality should no longer occur, and the color should not be auto-adjusted until the light is turned off and back on again.

When all drivers follow this formula, there will be consistent On and Warm Dim lighting experiences for customers.

Beginning with 3.3.0, the LightV2 proxy 'Dim' and 'On' color presets can be changed in Composer and Navigator. Composer currently has a checkbox to 'enable' the Dim color. Although this checkbox is not an 'enable dim color' feature, it is a 'hide the dim color preset in Composer' feature.

The intention of this checkbox was to help reduce dealer confusion, but it added potential driver developer confusion. Upon 'disabling' the Dim color, Composer is just setting the Dim preset color to the On preset color. The LightV2 proxy always has an On and Dim preset defined, regardless of the checkbox in Composer being checked or unchecked. If Drivers want to know if this checkbox is 'checked' there isn't a 100% safe way to know. However, drivers could consider it potentially checked if the Dim and On preset colors are not the same color

Name

UPDATE_COLOR_PRESET ()

Parameter	Type	Description
COMMAND	STR	This will be one of the following strings:
		ADDED, MODIFIED, REMOVED.
ID	NUM	Preset ID.
NAME	STR	Name of the preset.

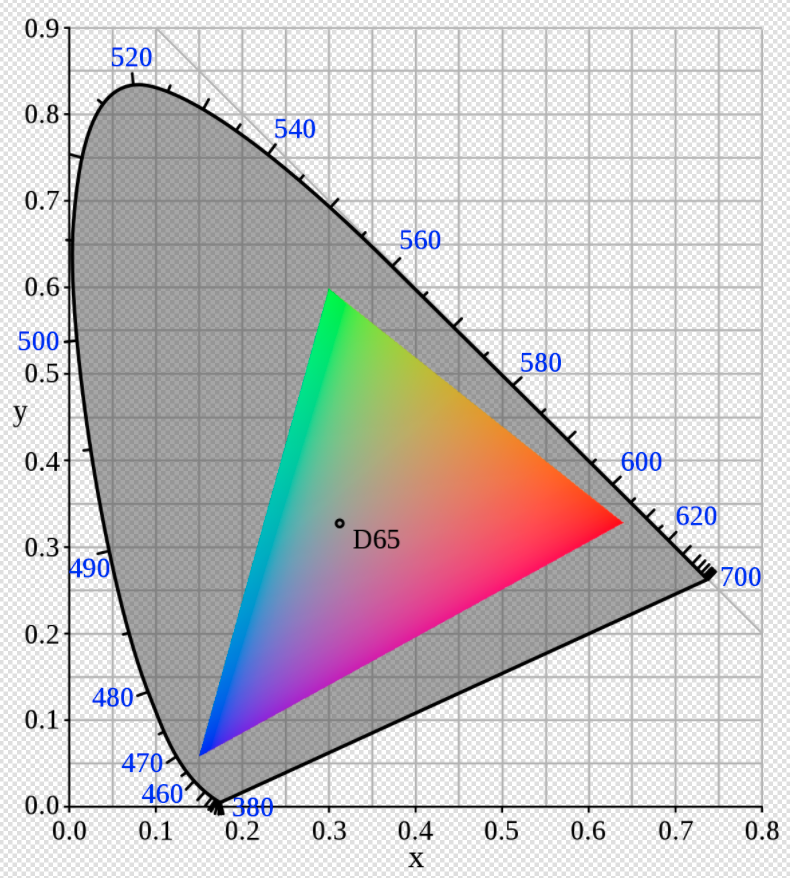

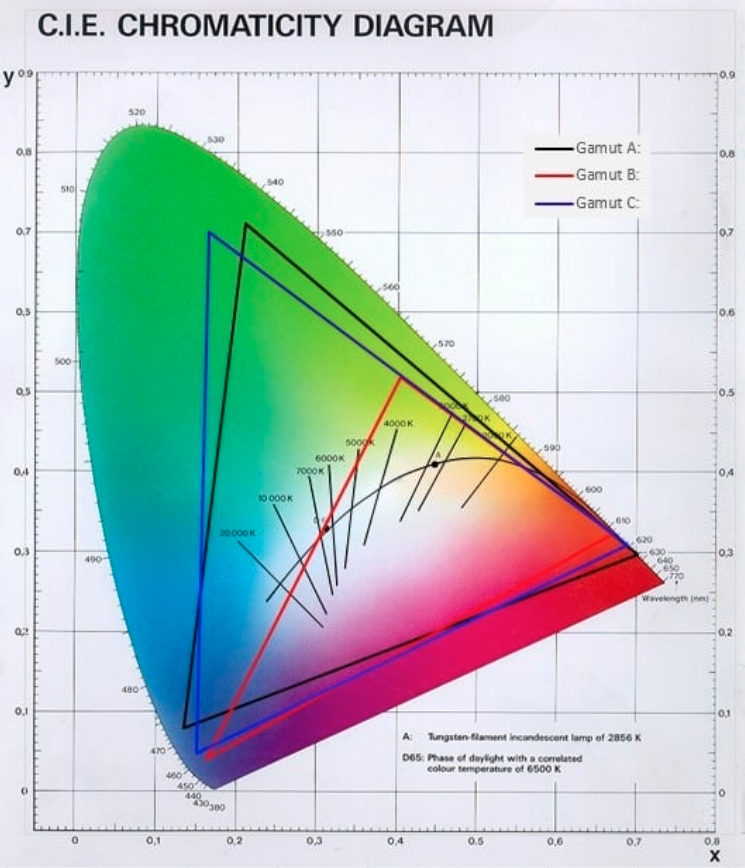

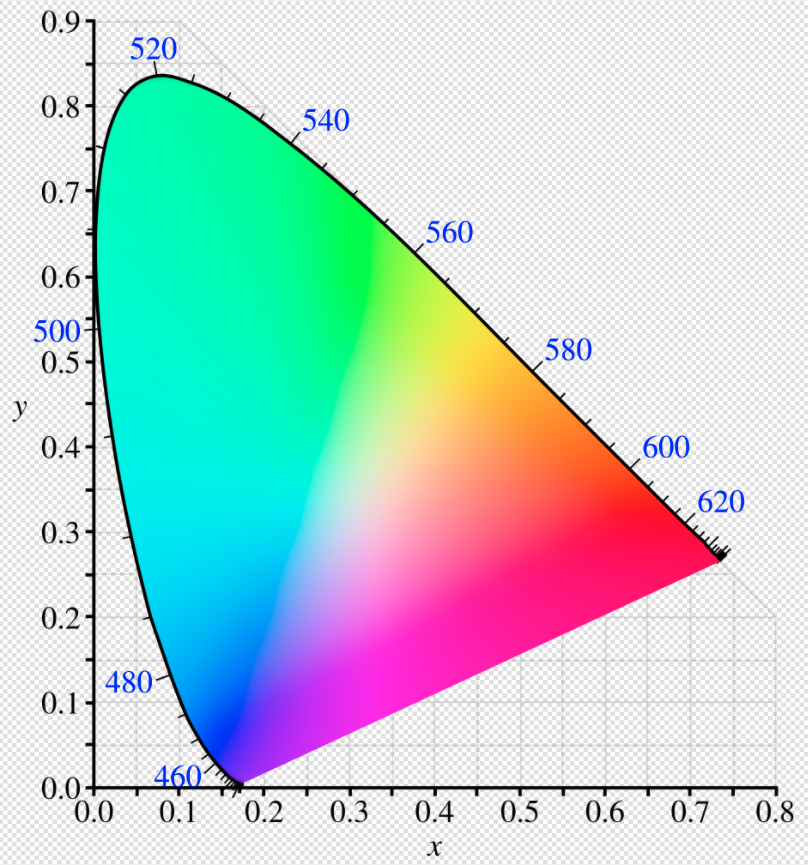

COLOR X	DOUBLE	CIE 1931 Chromaticity Color.
COLOR Y	DOUBLE	CIE 1931 Chromaticity Color.
COLOR MODE	UInt	Color Mode (0 Full Color, 1 CCT)

Returns

None

SET_BRIGHTNESS_ON_MODE

Older drivers that used "Default On" a.k.a: “PRESET_LEVEL" will notice that the "On" preset holds this value.

Name

SET_BRIGHTNESS_ON_MODE ()

Parameter	Type	Description
PRESET ID	INT	Preset ID that a light should turn on to.

Returns

None

SET_BRIGHTNESS_RATE_DEFAULT

This is used by old(deprecated) generic On/Off commands, Navigators, and user created lighting scenes.

When this value is changed, drivers will receive a protocol driver command of UPDATE_BRIGHTNESS_RATE_DEFAULT with a parameter RATE of the value.

Note: If a driver has its color rate behavior set to be linked to the brightness rate, then this call will also update the color rate.

Name

SET_BRIGHTNESS_RATE_DEFAULT ()

Parameter	Type	Description
LIGHT BRIGHTNESS RATE DEFAULT	INT	Default rate that will be used if no rate is specified.

Name

SET_CLICK_RATE_UP()

Parameter	Type	Description
RATE	INT	In milliseconds

Returns

None

SET_CLICK_RATE_DOWN

Used to set the click rate down for the device. When a driver gets this command, it MUST send a CLICK_RATE_DOWN notification with the value that the driver accepted.

Name

SET_CLICK_RATE_DOWN()

Parameter	Type	Description
RATE	INT	In milliseconds

Returns

None

ADD_DRIVER_COLOR_PRESET

Used to add a new driver specific color preset. The PRESET_NAME is always required. The remainder of the parameters are required or optional depending on how the color is specified:

If the color is being set using hue and saturation, the PRESET_COLOR_HUE, PRESET_COLOR_SATURATION, and PRESET_COLOR_MODE are all required.

If the color is being set using xy, the PRESET_COLOR_X, PRESET_COLOR_Y, and PRESET_COLOR_MODE are all required.

If the color temperature is being set, only the PRESET_COLOR_CORRELATED_TEMPERATURE is required.

If the appropriate values are not set, an error will be returned.

Name

ADD_DRIVER_COLOR_PRESET ()

Parameter	Description
PRESET\\\\\\\_NAME	The name to give to the preset that is being added.
One of the following three Color Sets are also required
Color Set 1	PRESET COLOR CORRELATED TEMPERATURE - The color correlated temperature that the preset should be set to.
Color Set 2	PRESET COLOR X - The color chromaticity x coordinate to be used in this preset. PRESET COLOR Y - The color chromaticity y coordinate to be used in this preset. Optional: PRESET COLOR MODE - The color mode used by this preset. 0 = Full Color, 1 = CCT. If this parameter is not provided, Full Color is assumed, unless the light only supports CCT, then CCT is assumed.
Color Set 3	This method is highly discouraged as it is confined to the rRGB gamut and thus can't achieve many colors that typical color lights support.
PRESET\\\\\\\_COLOR\\\\\\\_HUE	The hue to use for this preset. Range of 0 through 359 degrees. PRESET COLOR SATURATION - The saturation to use for this preset. Range of 0 to 100.

Returns

On return, the "addResult" variable will contain an XML string that indicates success or failure. If the string indicates success, the ID for the newly created preset will also be included. If the string indicates failure, a reason may be provided for the failure.

Sample success message:

<success>true</success><presetId>3</presetId></return_data>

Sample failure message:

<return_data><success>false</success><reason>Invalid parameters</reason></return_data>

Example

The example code below adds a preset named "Driver Color Preset"

local tParams = {PRESET_NAME="Driver Color Preset", PRESET_COLOR_X=0.1500, PRESET_COLOR_Y=0.0722, PRESET_COLOR_MODE=1}

local addResult = C4:SendUIRequest(proxyDeviceId, "ADD_DRIVER_COLOR_PRESET", tParams)

C4 TYPE MANAGER

Used to add, remove, or modity the Presets for a c4Type. Each C4Type must have a unique Name. c4Types handle saving and restorng all information associated to them, including restoring bindings and preset information

C4Types are expanding and currently offer:

LEVEL - Brightness, shades, volume.
COLOR - CIE1931 xy.
MODE
BATTERY
NUMBER
STRING
DEVICE_HEALTH

Name

C4TYPE_COMMAND ()

Parameter	Description
string	C4TYPE NAME. Unique "Name" for the C4Type that will be operated on.
string	ACTION. Command to run on the C4Type. This includes:
	C4TYPE REGISTER - Registers a new C4Type.
	TYPE - The Type of C4Type.
	C4TYPE UNREGISTER - Removes an existing C4Type.
	PRESET ADD. See usage note below.
	PRESET REMOVE. See usage note below.
	PRESET MODIFY. See usage note below.
	PRESET BINDING MODIFY. See usage note below.

Returns

None

Usage Note

Additional parameters are required if the ACTION value used is PRESET.

Parameter	Type	Description
PRESET ID	STR	String - ID of the Preset.
PRESET ORIGIN	STR	String - Origin of the Preset.
PRESET FUNCTION	The Preset operation to run PRESET ADD, PRESET MODIFY and PRESET REMOVE.	The Preset operation to run PRESET ADD, PRESET MODIFY and PRESET REMOVE.
PRESET ADD	Add the Preset	Add the Preset

Additionally, each c4Types above has different parameters that need to be specified.

PRESET_ADD

Parameter	Description
PRESET LEVEL	The value of the preset.
PRESET TYPE	Optional.How the Preset is adjusted.
PERCENT	Allows user to select 0-100. If not specified then the PRESET LEVEL is assumed to be a raw level value.

PRESET_MODIFY

Parameter	Description
Level	PRESET LEVEL - The value of the preset

PRESET_REMOVE - No parameters

PRESET_BINDING_MODIFY

Parameter	Description
PRESET BINDING ID	Integer ID of the binding for the driver you want to Add/Modify/Remove. Use 0 to remove the binding.
PRESET ACTIVE COLOR	Color when the Preset is Active.
PRESET INACTIVE COLOR	Color when the Preset is Inactive.

Examples

In addition to "Brightness" for a NAME, "Color" can be used for lights that support color in the LightV2 proxy and "Blind Level" can be used for the Blind Proxy for blind Level presets. See the examples to the right.

-- Adding a Preset:
C4SendToProxy(5001,"C4TYPE_COMMAND", tParams, "COMMAND")
tParams = {
C4TYPE_NAME="Brightness",
ACTION=PRESET_ADD,
PRESET_NAME="New Preset Name",
PRESET_ID="New Preset ID",
PRESET_TYPE="PERCENT",  (Optional, raw value assumed otherwise)
PRESET_LEVEL="50"}


-- Modify Preset:
C4SendToProxy(5001,"C4TYPE_COMMAND", tParams, "COMMAND")
tParams = {
C4TYPE_NAME="Brightness",
ACTION=PRESET_MODIFY,
PRESET_NAME="On",
PRESET_ID="New Preset ID",
PRESET_TYPE="PERCENT", (Optional, raw value assumed otherwise)
PRESET_LEVEL="50"}


--Delete Preset:
C4SendToProxy(5001,"C4TYPE_COMMAND", tParams, "COMMAND")
tParams = {
C4TYPE_NAME="Brightness",
ACTION=PRESET_REMOVE,
PRESET_NAME="On"
PRESET_ID="New Preset ID",
}

--Add/Remove a binding for a Preset:
C4SendToProxy(5001, "C4TYPE_COMMAND", tParams, "COMMAND")
tParams = {
C4TYPE_NAME="Brightness",
ACTION="PRESET_BINDING_MODIFY",
PRESET_BINDING_ID="100" (BindingID of a driver or proxy, or use -1 to remove the binding for this preset)
PRESET_BUTTON_ACTION="PUSH",
PRESET_ACTIVE_COLOR="0000ff",
PRESET_INACTIVE_COLOR="000000"}

--Activate a Preset:
C4SendToProxy(5001, "C4TYPE_COMMAND", tParams, "COMMAND")
tParams = {
C4TYPE_NAME="Brightness"
ACTION="PRESET_ACTIVATE",
PRESET_NAME="On"
PRESET_ID="New Preset ID",
}

Light V2 Conversion Commands

This section lists the Commands used for converting to/from hue, saturation and lightness (HSV) and red, blue and green (RGB).

Control4 OS 3.3.0 and later releases include native support for Color Chromaticity and Color Correlated Temperature (CCT) functionality. Navigators, the Light V2 Proxy, and the Advanced Lighting Scene (ALS) agent use this new color architecture. This means that Drivers written against the 3.3.0 Light V2 Proxy can now implement native color support.

Color API's between the proxy, ALS agent and drivers are based on the CIE 1931 XY Chromaticity standard for visible color.

Beginning with O.S. 3.3.0, all drivers (including non-color) should implement the new Brightness Target API for communicating brightness to the Light V2 proxy.

Understanding Chromaticity

Currently, no bulb or LED strip can produce all of the colors seen by the human eye. However, the range of colors lighting devices can produce is constantly growing. In addition to this, most lighting devices do not produce the same range of colors as other devices. In order to provide a consistent color experience in a home which could include various brands and models of bulbs or strip lighting; the Control4 color API needs to support all possible visible colors. Also, RGB and Hue/Saturation data values are not universal. The same RGB and Hue/Saturation data value across different lighting devices will often produce different actual visible colors. The use of Chromaticity can solve these issues.

Chromaticity allows for communicating a color using XY coordinates that is universal and can be computationally converted to various other color spaces, formats, and their respective data values. Below is a diagram showing all visible light wavelengths and their reference points according to the CIE 1931 Chromaticity standard. All visible colors can be specified by an XY coordinate.

The Use of Gamuts

Most light driver developers are familiar with Hue and Saturation or RGB values. Hue and Saturation are a data representation of how much of a color something is in relation to how much it can be in total. RGB is similar but also includes how much of its total brightness is used. Neither of these provide a way to verify if two different lighting devices are producing the same viewable color as seen by a home owner.

However, if a devices’ gamut value for the RGB or Hue/Sat value is known, it is possible to compare this device with a different device’s gamut values making it possible to understand how the two device's colors relate. Below are the gamut triangles of three different LED chips, used in a lighting products.

In the image above, you can see that Gamut B (the smaller Red triangle) can produce a far smaller range of colors than the Gamut A (Black) triangle. If we were to send the RGB data of "0,255,0" to two different devices (one device using Gamut A LED chips and another device using Gamut B LED chips) the actual visible green color light produced by both devices would be very different.

For example, consider a home owner wants to set two different light device colors to "White" or the center of each triangle: 255,255,255 for RGB and the device gamut values are not used in their respective drivers. The resulting visual white color that the home owner would see would be very different between the two light devices. In this case, the device using Gamut B LED chips would be a much lower Color Correlated Temperature (CCT). In fact, the difference between the two devices would be over 1000. This could certainly annoy many home owners. This is why it's very useful to know the gamut of your device if it is possible to obtain it

Driver developers that know the gamut of their LED chips also know that there are standard mathematical formulas for transitioning any RGB value to/from the more universal XY Chromaticity color space.

For driver developers who do not know their LED chips gamut or aren't interested in color accuracy the provided RGB↔XY lua conversion function can be used. Be aware that these calls map RGB and Hue/Saturation data values to the generic sRGB gamut and that the color a home owner or dealer selects on UIs may not match the color produced by the LED chips. Below is graphical representation for the sRGB gamut for reference.

Lack Brightness Values

Chromaticity does not include a data value for brightness. Reasons for this include:

Many users prefer to adjust color and brightness individually, such as selecting a color then ramping brightness or picking a brightness and changing colors.
If Color presets included brightness it would result in multiple presets of the same Red color. However, they would be at different brightness levels. This would make color preset navigation and selection for home owners cumbersome.
Programming Event firing and Conditional checks would be very convoluted. For example, White at 50% is not be the same as White at 100%. And ultimately, all the user wanted to check is if the color was "White".
Similar to Programming complexity, Lighting Scene tracking would become unmanageable. Advanced Lighting Scene creation is more configurable and provides better ways for dealers to meet customers needs.

Color Correlated Temperature (CCT)

Many colored lighting devices are designed to fulfill just the CCT implementation of color. Drivers do have the ability to specify if they support CCT, Full Color or both. Different configuration and UI features are available based on capabilities specified by the driver. Most all "full color" lights will inherently support CCT, as the image below shows.

Note that Control4 OS Color APIs also allow specifying if a color is CCT or "Full Color". This helps the device know if the user is trying to control the light in one mode vs another.

ColorCCTtoXY

This function converts a CCT (color temperature in Kelvin) color to the CIE-1931 xy chromaticity.

This function was released in conjunction with O.S. 3.3.0.

Signature

C4:ColorCCTtoXY (k)

Parameters

Parameter	Description
num	Number representing Kelvin temperature.

Returns

Parameter	Description
num	Number representing x component of the CIE-1931 xy chromaticity.
num	Number representing y component of the CIE-1931 xy chromaticity.

ColorHSVtoRGB

This function converts an HSV color to the RGB color space.

This function was released in conjunction with O.S. 3.3.0.

Signature

C4:ColorHSVtoRGB (h, s, v, rgbScale)

Parameters

Parameter	Description
num	Number representing hue component of HSV.
num	Number representing saturation component of HSV.
num	Number representing value component of HSV.
num	(Optional) Number representing RGB scale (1 to 255), default value 255.

Returns

Parameter	Description
num	Number representing the red component of RGB (in given scale).
num	Number representing the green component of RGB (in given scale).
num	Number representing the blue component of RGB (in given scale).

Example

lua
print(C4:ColorHSVtoRGB(80, 100, 50))

ColorHSVtoXY

This function converts an HSV color to a CIE-1931 xy chromaticity. Note, there's no need for a driver developer to specify whitepoint and primaries if usinh srgb or rec2020 for the gamut parameter as described below.

This function was released in conjunction with O.S. 3.3.0.

Signature

C4:ColorHSVtoXY (h, s, v, gamut)

Parameters

Parameter	Description
num	Number representing hue component of HSV.
num	Number representing saturation component of HSV.
num	Number representing value component of HSV.
str	(Optional) Gamut used for conversion. Valid options are: "srgb" where the srgb primaries and whitepoint values are automatically used without requiring the primaries and whitepoint parameters being set. "rec2020" where where the rec2020 primaries and whitepoint values are automatically used without requiring the primaries and whitepoint parameters being set. “custom” where primaries and whitepoint values can be specified.

Returns

Parameter	Description
num	Number representing the x component of the CIE-1931 xy chromaticity.
num	Number representing the y component of the CIE-1931 xy chromaticity.

Examples

—Using three rgb params:—
C4:ColorHSVtoXY(0, 100, 100)
—Since no scale param is supported, the default of "255" is used for the scale value param.—

— Using srgb primaries and whitepoint: —
C4:ColorHSVtoXY(0, 100, 100, \"srgb\")
—Since no scale param is supported, the default of "255" is used for the scale value param.—

— Using rec2020 primaries and whitepoint: —
C4:ColorHSVtoXY(0, 100, 100, \"rec2020\")
—Since no scale param is supported, the default of "255" is used for the scale value param.—

— Using custom gamut where custom primaries and the 'default' d65 whitepoint is used: —
C4:ColorHSVtoXY(0, 100, 100, \"custom\", \"0.7,0.25,0.25,0.75,0.1,0.5\")

—Using custom gamut with both custom primaries and custom whitepoint is specified:—
C4:ColorHSVtoXY(0, 100, 100, \"custom\", \"0.7,0.25,0.25,0.75,0.1,0.5\", \"0.31271, 0.32902\")

—Using Rob params but specifying a custom rgb scale. Scale is 0.0 to 1.0 where 1.0 is full brightness: —
C4:ColorHSVtoXY(0, 100, 100, 1)

— Scale is 0.0 to 100 where 100 is full brightness: —
C4:ColorHSVtoXY(0, 100, 100, 100)

— Scale is 0.0 to 255 where 255 is full brightness: —
C4:ColorHSVtoXY(0, 100, 100, 255)

— Using srgb primaries & whitepoint: —
C4:ColorHSVtoXY(0, 100, 100, 255, \"srgb\")

— Using rec2020 primaries/whitepoint: —
C4:ColorHSVtoXY(0, 100, 100, 255, \"rec2020\")

— Custom gamut where custom primaries and the 'default' d65 whitepoint is used: —
C4:ColorHSVtoXY(0, 100, 100, 255, \"custom\", \"0.7,0.25,0.25,0.75,0.1,0.5\")

— Custom gamut with both custom primaries and custom whitepoint is specified: —
C4:ColorHSVtoXY(0, 100, 100, \"custom\", \"0.7,0.25,0.25,0.75,0.1,0.5\", \"0.31271, 0.32902\"

ColorRGBtoHSV

This function converts an RGB color to the HSV color space.

This function was released in conjunction with O.S. 3.3.0.

Signature

C4:ColorRGBtoHSV (r, g, b, rgbScale)

Parameters

Parameter	Description
num	Number representing the red component of RGB (in given scale).
num	Number representing the green component of RGB (in given scale).
num	Number representing the blue component of RGB (in given scale).
num	(Optional) Number representing RGB scale (1 to 255), default value 255.

Returns

Parameter	Description
num	Number representing hue component of HSV.
num	Number representing saturation component of HSV.
num	Number representing value component of HSV.

ColorRGBtoXY

This function converts an RGB color to a CIE-1931 xy chromaticity. Note, there's no need for a driver developer to specify whitepoint and primaries if usinh srgb or rec2020 for the gamut parameter as described below.

This function was released in conjunction with O.S. 3.3.0.

Signature

C4:ColorRGBtoXY (r, g, b, rgbScale, gamut)

Parameters

Parameter	Description
num	Number representing the red component of RGB (in given scale).
num	Number representing the green component of RGB (in given scale).
num	Number representing the blue component of RGB (in given scale).
num	(Optional) Number representing RGB scale (1 to 255). The default value is 255.
str	(Optional) Gamut used for conversion. Valid options are: "srgb" where the srgb primaries and whitepoint values are automatically used without requiring the primaries and whitepoint parameters being set. "rec2020" where where the rec2020 primaries and whitepoint values are automatically used without requiring the primaries and whitepoint parameters being set. “custom” where primaries and whitepoint values can be specified.

Returns

Parameter	Description
num	Number representing the x component of a CIE-1931 xy chromaticity.
num	Number representing the y component of a CIE-1931 xy chromaticity.

Examples

—Using three rgb params:—
C4:ColorRGBtoXY(0, 100, 100)
—Since no scale param is specified the default of "255" is used for the scale value param.—

— Using srgb primaries and whitepoint: —
C4:ColorRGBtoXY(0, 100, 100, \"srgb\")
—Since no scale param is specified the default of "255" is used for the scale value param.—

— Using rec2020 primaries and whitepoint: —
C4:ColorRGBtoXY(0, 100, 100, \"rec2020\")
—Since no scale param is specified the default of "255" is used for the scale value param.—

— Using custom gamut where custom primaries and the 'default' d65 whitepoint is used: —
C4:ColorRGBtoXY(0, 100, 100, \"custom\", \"0.7,0.25,0.25,0.75,0.1,0.5\")

—Using custom gamut with both custom primaries and custom whitepoint is specified:—
C4:ColorRGBtoXY(0, 100, 100, \"custom\", \"0.7,0.25,0.25,0.75,0.1,0.5\", \"0.31271, 0.32902\")

—Using Rob params but specifying a custom rgb scale. Scale is 0.0 to 1.0 where 1.0 is full brightness: —
C4:ColorRGBtoXY(0, 100, 100, 1)

— Scale is 0.0 to 100 where 100 is full brightness: —
C4:ColorRGBtoXY(0, 100, 100, 100)

— Scale is 0.0 to 255 where 255 is full brightness: —
C4:ColorRGBtoXY(0, 100, 100, 255)

— Using srgb primaries & whitepoint: —
C4:ColorRGBtoXY(0, 100, 100, 255, \"srgb\")

— Using rec2020 primaries/whitepoint: —
C4:ColorRGBtoXY(0, 100, 100, 255, \"rec2020\")

— Custom gamut where custom primaries and the 'default' d65 whitepoint is used: —
C4:ColorRGBtoXY(0, 100, 100, 255, \"custom\", \"0.7,0.25,0.25,0.75,0.1,0.5\")

— Custom gamut with both custom primaries and custom whitepoint is specified: —
C4:ColorRGBtoXY(0, 100, 100, \"custom\", \"0.7,0.25,0.25,0.75,0.1,0.5\", \"0.31271, 0.32902\"

ColorXYtoCCT

This function converts from a CIE-1931 xy chromaticity to a CCT (color temperature in Kelvin) color.

This function was released in conjunction with O.S. 3.3.0.

Signature

C4:ColorXYtoCCT (x, y)

Parameters

Parameter	Description
num	Number representing the x component of a CIE-1931 xy chromaticity.
num	Number representing the y component of a CIE-1931 xy chromaticity.

Returns

Parameter	Description
num	Number representing the CIE-1931 xy chromaticity as a Kelvin temperature.

Usage Note

This function will return a color temperature for any value provided. This includes color values that fall outside of the usual white/CCT colors.

ColorXYtoHSV

This function converts a CIE-1931 xy chromaticity to the HSV color space. Note, there's no need for a driver developer to specify whitepoint and primaries if usinh srgb or rec2020 for the gamut parameter as described below.

This function was released in conjunction with O.S. 3.3.0.

Signature

C4:ColorXYtoHSV (x, y, gamut)

Parameters

Parameter	Description
num	Number representing the x component of a CIE-1931 xy chromaticity.
num	Number representing the y component of a CIE-1931 xy chromaticity.
str	(Optional) Gamut used for conversion. Valid options are: "srgb" where the srgb primaries and whitepoint values are automatically used without requiring the primaries and whitepoint parameters being set. "rec2020" where where the rec2020 primaries and whitepoint values are automatically used without requiring the primaries and whitepoint parameters being set. “custom” where primaries and whitepoint values can be specified.

Returns

Parameter	Description
num	Number representing the hue component of HSV.
num	Number representing the saturation component of HSV.
num	Number representing the value component of HSV.

Examples

—Using three rgb params:—
C4:ColorXYtoHSV(0, 100, 100)
—Since no scale param is supported, the default of "255" is used for the scale value param.—

— Using srgb primaries and whitepoint: —
C4:ColorXYtoHSV(0, 100, 100, \"srgb\")
—Since no scale param is supported, the default of "255" is used for the scale value param.—

— Using rec2020 primaries and whitepoint: —
C4:ColorXYtoHSV(0, 100, 100, \"rec2020\")
—Since no scale param is supported, the default of "255" is used for the scale value param.—

— Using custom gamut where custom primaries and the 'default' d65 whitepoint is used: —
C4:ColorXYtoHSV(0, 100, 100, \"custom\", \"0.7,0.25,0.25,0.75,0.1,0.5\")

—Using custom gamut with both custom primaries and custom whitepoint is specified:—
C4:ColorXYtoHSV(0, 100, 100, \"custom\", \"0.7,0.25,0.25,0.75,0.1,0.5\", \"0.31271, 0.32902\")

—Using Rob params but specifying a custom rgb scale. Scale is 0.0 to 1.0 where 1.0 is full brightness: —
C4:ColorXYtoHSV(0, 100, 100, 1)

— Scale is 0.0 to 100 where 100 is full brightness: —
C4:ColorXYtoHSV(0, 100, 100, 100)

— Scale is 0.0 to 255 where 255 is full brightness: —
C4:ColorXYtoHSV(0, 100, 100, 255)

— Using srgb primaries & whitepoint: —
C4:ColorXYtoHSV(0, 100, 100, 255, \"srgb\")

— Using rec2020 primaries/whitepoint: —
C4:ColorXYtoHSV(0, 100, 100, 255, \"rec2020\")

— Custom gamut where custom primaries and the 'default' d65 whitepoint is used: —
C4:ColorXYtoHSV(0, 100, 100, 255, \"custom\", \"0.7,0.25,0.25,0.75,0.1,0.5\")

— Custom gamut with both custom primaries and custom whitepoint is specified: —
C4:ColorXYtoHSV(0, 100, 100, \"custom\", \"0.7,0.25,0.25,0.75,0.1,0.5\", \"0.31271, 0.32902\"

ColorXYtoRGB

This function converts a CIE-1931 xy chromaticity to the RGB color space. Note, there's no need for a driver developer to specify whitepoint and primaries if usinh srgb or rec2020 for the gamut parameter as described below.

This function was released in conjunction with O.S. 3.3.0.

Signature

C4:ColorXYtoRGB (x, y, rgbScale, gamut)

Parameters

Parameter	Description
num	Number representing the x component of a CIE-1931 xy chromaticity.
num	Number representing the x component of a CIE-1931 xy chromaticity.
num	(Optional) Number representing RGB scale (1 to 255). The default value is 255.
str	(Optional) Gamut used for conversion. Valid options are: "srgb" where the srgb primaries and whitepoint values are automatically used without requiring the primaries and whitepoint parameters being set. "rec2020" where where the rec2020 primaries and whitepoint values are automatically used without requiring the primaries and whitepoint parameters being set. “custom” where primaries and whitepoint values can be specified.

Returns

Parameter	Description
num	Number representing the red component of RGB in given scale.
num	Number representing the green component of RGB in given scale.
num	Number representing the blue component of RGB in given scale.

Examples

—Using three rgb params:— C4:ColorXYtoRGB(0, 100, 100) —Since no scale param is specified the default of "255" is used for the scale value param.— — Using srgb primaries and whitepoint: — C4:ColorXYtoRGB(0, 100, 100, \"srgb\") —Since no scale param is specified the default of "255" is used for the scale value param.— — Using rec2020 primaries and whitepoint: — C4:ColorXYtoRGB(0, 100, 100, \"rec2020\") —Since no scale param is specified the default of "255" is used for the scale value param.— — Using custom gamut where custom primaries and the 'default' d65 whitepoint is used: — C4:ColorXYtoRGB(0, 100, 100, \"custom\", \"0.7,0.25,0.25,0.75,0.1,0.5\") —Using custom gamut with both custom primaries and custom whitepoint is specified:— C4:ColorXYtoRGB(0, 100, 100, \"custom\", \"0.7,0.25,0.25,0.75,0.1,0.5\", \"0.31271, 0.32902\") —Using Rob params but specifying a custom rgb scale. Scale is 0.0 to 1.0 where 1.0 is full brightness: — C4:ColorXYtoRGB(0, 100, 100, 1) — Scale is 0.0 to 100 where 100 is full brightness: — C4:ColorXYtoHSV(0, 100, 100, 100) — Scale is 0.0 to 255 where 255 is full brightness: — C4:ColorXYtoRGB(0, 100, 100, 255) — Using srgb primaries & whitepoint: — C4:ColorXYtoRGB(0, 100, 100, 255, \"srgb\") — Using rec2020 primaries/whitepoint: — C4:ColorXYtoRGB(0, 100, 100, 255, \"rec2020\") — Custom gamut where custom primaries and the 'default' d65 whitepoint is used: — C4:ColorXYtoRGB(0, 100, 100, 255, \"custom\", \"0.7,0.25,0.25,0.75,0.1,0.5\")

— Custom gamut with both custom primaries and custom whitepoint is specified: — C4:ColorXYtoRGB(0, 100, 100, \"custom\", \"0.7,0.25,0.25,0.75,0.1,0.5\", \"0.31271, 0.32902\"

Light V2 Conditionals

The following Conditionals are used for Composer Programming to perform logic comparisons of Variables. This functionality is managed by the Proxy and Director.

IS_BRIGHTNESS

Double. Percent check of the current brightness.

IS_BRIGHTNESS_TARGET

Double. Percent check of the target brightness.

IS_COLOR

Boolean. If the color of the light matches the color.

IS_COLOR_TARGET

Boolean. If the color of the light does not match the color.

IS_ON

Boolean. If the light is on at any level.

IS_OFF

Boolean. If the light is at the "Off" preset.

BTN_PRESSED

Boolean. If the button is currently being pressed.

BTN_RELEASED

Boolean. If the button is not currently being pressed.

BTN_COLOR

Boolean. If the buttons led color matches a hex string.

BTN_NOT_COLOR

Boolean. If the buttons led color does not match a hex string.

Light V2 Events

The following are System Events that are provided and managed by the Proxy. These can be used for Composer Programming or other drivers to monitor the changes of a values reflected in a LightV2 proxy.

Light On Light has turned On. Event ID = 5100.

Light Off Light has turned Off. Event ID = 5101.

Light Brightness Changed The brightness of the light has changed. Event ID = 4001.

Light Brightness Changing The brightness of the light is changing. Event ID = 4000.

Light Color Changed The color of the light has changed. Event ID = 4003

Light Color Changing The color of the light is changing. Event ID = 4002

Old Light Level Changed The light level of the light has changed and is at the final brightness. Event ID = 5000.

Keypad Events

An event is fired when something happens to one of the buttons on the device. The pattern for determining the Event ID is:

5001 + action + (btnID * 5).

The actions are:

Release = 0
Push = 1
Single Click = 2
Double Click = 3
Triple Click = 4

The button IDs are determined by the protocol driver, but the standard ordering is:

Top = 0
Bottom = 1
Toggle = 2

Light V2 Variables

Light State: ID = 1000. Boolean indicating if the light Brightness is not at the Off preset. If you set this variable to true on a dimmer, it will go to the On preset. On a switch, only the first variable exists.

Brightness Percent: ID = 1001. An integer indicating the current brightness for a dimmer. The value should be between 0-100.

Brightness Target Ramp Rate in Milliseconds: ID = 1120. Primarily for UI's who request brightness information during a ramp, as this will allow them to know how far through the ramp the light is. This is updated every 1000ms. This works for only drivers that have enabled the supports_brightness_target capability.

Brightness Target Rate Remaining in Milliseconds: ID = 1121. Primarily for UI's who request brightness information during a ramp, as this will allow them to know how far through the ramp the light is. This is updated every 1000ms. This works for only drivers that have enabled the supports_brightness_target capability.

Click Rate Up: ID = 1002. An integer indicating the number of milliseconds. (Used in "On" Preset).

Click Rate Down: ID = 1003. An integer indicating the number of milliseconds. (Used in "Off" Preset).

Hold Rate Up: ID = 1004. An integer indicating the number of milliseconds. (Used in "Slow On" Preset).

Default On Preset Brightness: ID = 1006. An integer indicating what the preset "On" brightness is and thus what a light Brightness would go to if the top wall keypad button is clicked, regardless what the light level is at and including even if the current brightness is higher. (Used in "On" Preset).

Max Brightness: ID = 1007. An integer indicating how high the light will go with a click. To go passed the max (still capped at 100%), you need to press and hold.

Min Brightness: ID = 1008. An integer on how low the light will go before skipping values between this number and 0/completely off.

Cold Start Brightness: ID = 1009. An integer of what level to go to when first turning on before attempting to do a ramp.

Cold Start Time: ID = 1010. An integer indicating the amount of time in milliseconds to stay at the cold start level before starting a ramp.

Color Presets ID=1300. An XML string containing all of the Color Presets that are configured in the system. For UI use only.

Color Active Presets ID=1301. An XML string containing all of the presets that are currently active. For UI use only.

See example below: xml <active_presets> <preset> <name>Relax</name> <id>2</id> <origin>2</origin> </preset> </active_presets>

In the example to the right, the origin value indicates if the preset came from a device (1), or the color agent (2).

Light Dynamic Capabilities ID=6661. An XML string containing the active dynamic capabilities for this light proxy. For UI use Only.

See example below

<DynamicCapabilities>
  <supports_broadcast_scenes>False</supports_broadcast_scenes>
  <dimmer>False</dimmer>
  <supports_target>False</supports_target>
  <supports_color>False</supports_color>
  <supports_color_correlated_temperature>False<supports_color_correlated_temperature>
  <color_correlated_temperature_min>1000<color_correlated_temperature_min>
  <color_correlated_temperature_max>20000</color_correlated_temperature_max>
  <color_rate_behavior>0</color_rate_behavior>
  <color_rate_min>0</color_rate_min>
  <color_rate_max>0</color_rate_max>
  <color_trace_tolerance>2</color_trace_tolerance>
  <has_extras>False</has_extras>
  <click_rate_min>0</click_rate_min>
  <click_rate_max>86400000</click_rate_max>
  <hold_rate_min>1000</hold_rate_min>
  <hold_rate_max>86400000</hold_rate_max>
</DynamicCapabilities>

VAR_C4_NESTING_PARENTS_CHILD_DEVICES Set this variable to a comma delimited list of ID values for the secondary device(s) required by the parent driver. This list represents the drivers that will be nested under the parent driver in Composer Pro. This is the associated driver(s) with the nested_driver_is_child capability set to true.

VAR_C4_NESTED_CHILDS_PARENT_DEVICE Set the variable to the ID of primary driver requiring its use. This is the associated driver with the nesting_driver_is_parent capability set to true.

Light V2 Protocol Notifications

BUTTON_ACTION

Used to inform the proxy that a button state has changed on the device. Note that the Proxy expects a Release if it gets a Push. If it does not receive a Release, subsequent Pushes will not work and state/tracking will be off.

Name

BUTTON_ACTION ()

Parameter	Type	Description
BUTTON ID	INT	BUTTON ID: Index of the button being controlled.
ACTIO	INT	The Event Type which include:
		0 - Release
		1 - Push
		2 - Single Tap
		3 - Double Tap
		4 - Triple Tap

Returns

None

BUTTON_INFO

Used to inform the proxy that a status of a button LED has changed. Color strings are in the format of 6 hex characters such as 000000, FFFFFF or 0000FF.

Name

BUTTON_INFO ()

Parameter	Type	Description
BUTTON ID	INT	Index of the button being controlled.
NAME	STR	Optional. Update the name of the button.
ON COLOR	STR	Optional. Hex string for the On color.
OFF COLOR	STR	Optional. Hex string for the Off color.
CURRENT COLOR	STR	Optional. Hex string for the Current color.

Returns

None

CLICK_COUNT

Used to tell the proxy that a button has been clicked multiple times.

Name

CLICK_COUNT ()

Parameter	Type	Description
BUTTON\ID	INT	Index of the button being controlled.
COUNT	INT	Number of clicks.

Returns

None

CLICK_RATE_DOWN

Used to inform the proxy that the hardware click rate for the "Off" Brightness preset changed.

Name

CLICK_RATE_DOWN ()

Parameter	Type	Description
RATE	INT	Number of milliseconds it takes for the light to ramp from all the way on to all the way off.

Returns

None

CLICK_RATE_UP

Used to inform the proxy that the hardware click rate for the "On" Brightness preset changed.

Name

CLICK_RATE_UP ()

Parameter	Type	Description
RATE:	INT	Number of milliseconds it takes for the light to ramp from all the way off to all the way on.

Returns

None

COLD_START_LEVEL

Note that this notification will be deprecated from the proxy in the near future. Control4 recommends using device specific properties for this value.

Used to inform the proxy that the hardware Cold Start level has changed. This is useful for hardware such as Control4’s Gen3 lighting where the hardware supports temporarily setting the brightness to this level in order to 'jump start' the capacitors/ballasts on LED and florescent lights. This value changes over time as capacitors and ballasts age.

Name

COLD_START_LEVEL ()

Parameter	Type	Description
BRIGHTNESS	INT	Percent from 0-99 for the Min On brightness to be remapped to.

Returns

None

COLD_START_TIME

Note that this notification will be deprecated from the proxy in the near future. Control4 recommends using device specific properties for this value.

Used to inform the proxy that the hardware Cold Start level has changed. This is useful for hardware such as Control4’s Gen3 lighting where the hardware supports temporarily setting the brightness to a level for this number of milliseconds in order to 'jump start' the capacitors/ballasts on LED and florescent lights. This value changes over time as capacitors and ballasts age.

Name

COLD_START_TIME ()

Parameter	Type	Description
BRIGHTNESS	INT	Number of milliseconds that the light is turned on to the COLD START LEVEL value.

Returns

None

DYNAMIC_CAPABILITIES_CHANGED

Used to update capabilities and proxy functionality without requiring a different c4i/c4z or for drivers that have capabilities that change during runtime. Multiple parameters can be set with a single notify for 'atomic changes' where some functionality may involve mutual exclusion/inclusion.

Example for parameters are Notify("supports_broadcast_scenes=true","dimmer=true"

Name

DYANAMIC_CAPABILITIES_CHANGED ()

Parameters

DYNAMIC_CAPABILITIES_CHANGED requires different parameters base on capability:

Supports Zigbee Broadcast Scenes

Parameter	Type	Description
supports broadcast scenes	BOOL	Supports Zigbee Broadcast Scenes

Level Target Support

If the driver supports the new level target API: LIGHT_BRIGHTNESS_CHANGING and LIGHT_BRIGHTNESS_CHANGED. This provides better light level tracking for UI's, ALS Scenes, and Composer Programming interaction by allowing drivers to specify the current level, their target level and the number of milliseconds it will take for the light to reach the target level.

Parameter	Type	Description
supports target	BOOL	Supports the new level target API

Dimmer

Used to change if a light is a dimmer or switch at any time. This is very useful for having a single driver provide both functionality depending on what hardware is connected or detected. Can also provide a dealer the ability to make a dimmer act as a switch for UI's and system functionality.

Parameter	Type	Description
dimmer	BOOL	If a light is a dimmer or switch at any time.

Note: If true, updates the following feature capabilities:

Reads ramp_level from c4i, if not defined, false is assumed.
Reads click/hold rates from c4i, if these are not defined, 0 is assumed.

Drivers using dynamic capabilities for ramp_level, click, and hold rate settings should re-send dynamic capability notifies for each of these after setting dimmer to true.

If false - Sets the following: - dimmer = false - ramp_level = false - click/rates = 0

Supports Brightness Stop

Parameter	Type	Description
dimmer	BOOL
supports brightness stop	true/false

Ramp Level

Parameter	Type	Description
ramp level	BOOL	Support ramp level

Default Brightness Rate Min

Parameter	Type	Description
brightness rate min	INT	0-INT16 MAX

Default Brightness Rate Max

Parameter	Type	Description
brightness rate max	INT	0-INT16 MAX

Supports Color

Parameter	Type	Description
supports color	BOOL	Supports color

Supports Color Correlated Temperature

Parameter	Type	Description
supports color correlated temperature	true/false	Supports color correlated temperature

Color Temperature Correlated Min

What is the lowest supported CCT value. Must be increment of 10. Set both min/max to the same value if the CCT value can not be changed.

Parameter	Type	Description
color correlated temperature min	500-20000	Lowest supported CCT value

Color Temperature Correlated Max

What is the highest supported CCT value. Must be increment of 10. Set both min/max to the same value if the CCT value can not be changed.

Parameter	Type	Description
color correlated temperature max	500-20000	Highest supported CCT value

Supports Color Stop

Parameter	Type	Description
supports color stop	BOOL	Supports color stop

Color Rate Behavior

Parameter	Type	Description
color rate behavior	Value. Values include: 0 - Unchangeable Rate, 1 - Device only supports one rate for brightness and color, 2 - Device supports ramping brightness and color at two different rates.	Color Rate Behavior

Default Color Rate Min

Parameter	Type	Description
color rate min	INT	0-INT16 MAX

Default Color Rate Max

Parameter	Type	Description
color rate max	0INT	0-INT16 MAX

Color Trace Tolerance

Parameter	Type	Description
color trace tolerance	NUM	0-20 * See capability documentation for more information.

Has Extras

Parameter	Type	Description
has extras	BOOL

Returns

None

HOLD_RATE_DOWN

Used to inform the proxy that the hardware click rate for the "Slow Off" Brightness preset changed.

Name

HOLD_RATE_DOWN ()

Parameter	Type	Description
RATE	INT	RNumber of milliseconds it takes for the light to ramp from all the way on to all the way off.

Returns

None

HOLD_RATE_UP

Used to inform the proxy that the hardware click rate for the "Slow On" Brightness preset changed.

Name

HOLD_RATE_UP ()

Parameter	Type	Description
RATE	INT	Number of milliseconds it takes for the light to ramp from all the way off to all the way on.

Returns

None

LIGHT_BRIGHTNESS_CHANGED

Part of the new Level Target API, used to notify the proxy that a lights brightness changed. It is not required to send a LIGHT_BRIGHTNESS_CHANGING Notify before sending this, so devices like switches or some dimmers that do not provide status on where they are going can still be implemented with the new API. This notify should always be sent to the proxy when the driver starts and/or when the hardware comes online and the driver knows the actual brightness of the hardware.

Name

LIGHT_BRIGHTNESS_CHANGED ()

Parameter	Type	Description
LIGHT BRIGHTNESS CURRENT	DOUBE	Double. Raw value of where the light brightness stopped.
LIGHT BRIGHTNESS CURRENT PRESET ID	INT	Integer. Optional. This should only be included if presets levels are defined and the level is equal to the preset. Providing this will allow the proxy to track and update the drivers level if the preset level is modified. This is needed for drivers making use of the Daylight Agent or similar features.

Returns

None

Usage Note

Dimmer Drivers should only use BRIGHTNESS_CHANGING and BRIGHTNESS_CHANGED notifies and no longer use LEVEL_CHANGE notify.

Switch drivers only need to use the BRIGHTNESS_CHANGED notify.

LIGHT_BRIGHTNESS_CHANGING

Part of the new Level Target API, used to notify the proxy that a lights brightness is changing. The benefit of using this Notify is that drivers can provide 'how the light brightness is changing'. Using this Notify greatly improves interaction with the system in numerous ways for components such as ALS Agent, Navigators, Composer Programming and so. A driver should enabled the supports_target capability if using this notify. The LIGHT_LEVEL Notify should be avoided if a driver uses the new API.

This behaves the same was as a Blind or other C4TypeLevel feature where the proxy generates Percentage scaling and for UI's and other system components, but since a single percent may not be enough resolution, we allow programming and other system components to set raw values for a device.

In the case where the 'end of the ramp' is unknown, specifying the end point of where the device will change to if no further interaction is done is the best practice. An example is if someone Holds a button to slow-ramp a light On, the driver should Notify the proxy that the end point is 100 if 100 is the max value of the light.

Name

LIGHT_BRIGHTNESS_CHANGING ()

Parameter	Type	Description
LIGHT BRIGHTNESS CURRENT	DOUBLE	Raw value of the lighting level. Does not need to be 0-100% and can be based on the Min and Max Brightness capabilities such as 0-10, 0-99. 0-256 and even negative if the Brightness Min is defined as a negative number.
LIGHT BRIGHTNESS TARGET	DOUBLE	Double. Raw value of where the light is going to.
RATE	INT	INumber of milliseconds it will take to ramp to the target level.
LIGHT BRIGHTNESS CURRENT PRESET ID	INT	Preset ID that was last activated. Providing this will allow the proxy to track and update the drivers level if the preset level is modified - This is needed for drivers making use of the Daylight Agent or similar features.
LIGHT BRIGHTNESS TARGET PRESET ID	INTR	Preset ID that the light is going to. Providing this will allow the proxy to track and update the drivers level if the preset level is modified. This is needed for drivers making use of the Daylight Agent or similar features.

Returns

None

Usage Note

Dimmer Drivers should only use BRIGHTNESS_CHANGING and BRIGHTNESS_CHANGED notifies and no longer use LEVEL_CHANGE notify.

Switch drivers only need to use the BRIGHTNESS_CHANGED notify.

LIGHT_COLOR_CHANGED

Used to inform the proxy that the color has finished changing. It is possible to use this call without the LIGHT_COLOR_CHANGING Notify call being sent first but, some Composer Programming paths will not be run. This notify should always be sent to the proxy when the driver starts and/or when the hardware comes online and the driver knows the actual color of the hardware.

Name

LIGHT_COLOR_CHANGED ()

Parameter	Type	Description
LIGHT COLOR CURRENT X	NUM	The CIE 1931 X coordinate for where the color change stopped.
LIGHT COLOR CURRENT Y	NUM	The CIE 1931 Y coordinate for where the color change stopped.
LIGHT COLOR CURRENT COLOR MODE	NUYM	Optional. 0 for Full Color, 1 if the XY coordinate is a CCT
LIGHT COLOR CURRENT PRESET ID	INT	Preset ID that was last activated. Providing this will allow the proxy to track and update the drivers level if the preset level is modified. This is required for drivers making use of the Daylight Agent or similar features.

Returns

None

LIGHT_COLOR_CHANGING

Used to inform the proxy that the color is changing on the light. The optional parameters are useful in case the color changed without the proxy knowing which might be needed by some unreliable lighting hardware.

Name

LIGHT_COLOR_CHANGING ()

Parameter	Type	Description
LIGHT COLOR TARGET X CIE 1931	NUM	X coordinate for where the color is going to.
LIGHT COLOR TARGET Y	NUM	CIE 1931 Y coordinate for where the color is going to.
LIGHT COLOR TARGET COLOR MODE	NUM	Optional. 0 for Full Color, 1 if the XY coordinate is a CCT
LIGHT COLOR TARGET COLOR RATE	INT	Optional. Integer. Number of milliseconds it will take to ramp to the target level. 0 will be used if this parameter is not provided.
LIGHT COLOR CURRENT X	NUM	Optional. CIE 1931 X coordinate for where the color is changing from.
LIGHT COLOR CURRENT Y	NUM	Optional. CIE 1931 Y coordinate for where the color is changing from.
LIGHT COLOR CURRENT COLOR MODE	NUM	Optional. 0 for Full Color, 1 if the XY coordinate is a CCT
LIGHT COLOR CURRENT PRESE ID	INT	Preset ID that was last activated. Providing this will allow the proxy to track and update the drivers level if the preset level is modified. This is required for drivers making use of the Daylight Agent or similar features.
LIGHT COLOR TARGE PRESET ID	INT	Preset ID that the light is going to. Providing this will allow the proxy to track and update the drivers level if the preset level is modified. This is required for drivers making use of the Daylight Agent or similar features.

Returns

None

LIGHT_LEVEL

Used to inform the proxy that the light level has changed.

Name

LIGHT_LEVEL ()

Parameter	Type	Description
LEVEL	INT	Percent from 0-100 of the current light level.

Returns

None

Usage Note

As of Operating System 3.3.0, drivers should no longer send incremental notifies of light level every 20ms, 500ms, 1000ms, etc, as the lights brightness ramps. Sending excessive incremental level updates caused performance issues including:

Excessive slowness in Proxies, Director, and Navigators.
Slow performance and inaccurate states for Advanced Lighting Scene tracking.
Excessive Zigbee traffic and often incorrect keypad button LED status.
Inconsistent slider movement in Navigators.
Excessive triggering and sometimes incorrect Composer programming being fired.

See the LIGHT_BRIGHTNESS_CHANGING notification for additional information.

MAX_ON

Used to inform the proxy that the hardware maximum On level has changed. This is useful for hardware such as Control4’s Gen3 lighting where the hardware supports remapping where 100% brightness is at for the actual hardware. This does not change the available brightness percent range from 0-100%.

Name

MAX_ON ()

Parameter	Type	Description
BRIGHTNESS	NUM	Percent from 1-100 for the Max On brightness to be remapped to.

Returns

None

MIN_ON

Used to inform the proxy that the hardware minimum On level has changed. This is useful for hardware such as Control4’s Gen3 lighting where the hardware supports remapping where 1% brightness is when the light is on. This does not change the available brightness percent range from 0-100%. Note that with LED lights, the usable minimum on range does change depending on bulb, age of bulb and other factors.

Name

MIN_ON ()

Parameter	Type	Description
int	NUM	Percent from 0-99 for the Min On brightness to be remapped to.

Returns

None

ONLINE_CHANGED

Used to inform the proxy that the online status of the device has changed. Due to backwards compatibility, the proxy starts 'online' as many old devices did not report online status. UI functionality will be disabled if the light is offline.

Name

ONLINE_CHANGED ()

Parameter	Type	Description
STATE	BOOL.	True/False. Whether the device is online or not.

Returns

None

PRESET_LEVEL

This feature is only to be used if the actual hardware supports a physical button and the light can be programmed to turn on to a specific level. Used to set brightness preset of the "On" (ID = 1) Preset that is used when a user clicks the Top button of a light.

Name

PRESET_LEVEL ()

Parameter	Type	Description
BRIGHTNESS	INT	Percent value from 1-100.

Returns

None

Advanced Lighting Scene Agent

Capabilities

Capabilities provide a way for protocol driver to tell an agent what functionality the driver and/or hardware has. Capabilities need to be defined in the drivers c4i or c4z configuration file or updated via a Dynamic Capabilities Changed Notify.

Only capacities that are different from the defaults need to be specified.

advanced_scene_support

Whether the device supports the full Advanced Lighting Scenes commands and API's. This capability is primarily useful for drivers that want to support multi-scene elements. Additionally, Zigbee and zWave devices can take advantage of broadcast packets to avoid each driver needing to send a unicast packet, as would be done with reduced_als_support.

If this capability is true, drivers must include full support of the following:

Parsing and using XML received from the PUSH_SCENE command that is sent, when the device comes online, to know what the scene involvement is for the light.
Support scenes with multiple elements.
For performance, only sends one(1) level update Notify when load hardware is at final scene level. -- We highly recommend all existing and new drivers be moved over to the BRIGHTNESS TARGET API design for performance reasons and better UI tracking of level during ramping.
The following ALS Commands:
PUSH_SCENE
ACTIVATE_SCENE
RAMP_SCENE_UP
RAMP_SCENE_DOWN
STOP_SCENE_RAMP Optionally - These commands were used as workarounds for lights in early Advanced Lighting Scene agent times (pre 3.0.0) but are no longer needed, as long as the driver properly handles the PUSH_SCENE command changes.
SYNC_SCENE
SYNC_ALL_SCENES

Signature

<advanced_scene_support></advanced_scene_support>

Type

Boolean: defaults to false.

Dynamic Capability

Usage Note

If a driver is using the light v1 proxy and doesn't have either of the advanced_scene_support or reduced_als_support capabilities in its c4i file, the agent assumes that reduced_als_support is true. This allows existing 3rd party lights into advanced scenes. The v1 proxy was modified to abstract away the important differences from the protocol drivers. If a 3rd party driver does want full scene support, it must use the Light V2 proxy.

If any lights have full ALS support then only the "New" broadcast MIB is sent, otherwise the older ZCL MIB is sent, as according to logic in ALS "activate" function.

reduced_als_support

If the advanced_scene_support capability is false, a driver can use the reduced_als_support capability. Most drivers will find this sufficient for ALS support and using this option greatly reduces development time and complexity for driver developers, as less than 1% of Control4 systems have implemented multi-element scenes. Specifying this option will cause ALS to send individual SET_BRIGHTNESS_TARGET and SET_COLOR_TARGET commands to a driver when a scene is activated. This means drivers do not have to implement PUSH_SCENE, ACTIVATE_SCENE, SYNC_SCENE, SCENE_ALL_SCENES, manage XML table lookups, or multi-element scenes that advanced_scene_support=true does require.

The device will be allowed into ALS scenes, but with the following limitations:

No Multi Element support
No Flash Support

If this capability is true, drivers must include support for the following:

SET_BRIGHTNESS_TARGET
RAMP_SCENE_UP
RAMP_SCENE_DOWN
STOP_SCENE_RAMP
Optional:
SET_COLOR_TARGET

Signature

<reduced_als_support></reduced_als_support>

Type

Boolean: defaults to false.

Dynamic Capability

Usage Note

If any lights have full ALS support then only the "New" broadcast MIB is sent, otherwise the older ZCL MIB is sent, as according to logic in ALS "activate" function.

supports_broadcast_scenes

Whether the device supports broadcasts. This includes Zigbee, ZWave, UDP. If supports_broadcast_scenes and supports_multicast_scenes are both false, the light V2 proxy will send a SYNC_SCENES command to the Protocol Driver with TIME and STATE parameters, when the device comes online.

If set to true, ALS assumes the device is always a zigbee device.

If set to true, LightV2 Proxy assumes the device is always a zigbee device.

Forces an OnZigbeeDeviceOnline(Offline) to occur when the standard DeviceOnline(Offline) command is called.

Signature

<support_broadcast_scenes></support_broadcast_scenes>

Type

Boolean: defaults to false.

Dynamic Capability

supports_multichannel_scenes

Causes the LightV2 proxy to send the "EXECUTE_SCENE" command to the device rather than a set level command. If supports_broadcast_scenes and supports_multicast_scenes are both false, the light V2 proxy will send a SYNC_SCENES command to the Protocol Driver with TIME and STATE parameters, when the device comes online.

Signature

<support_multichannel_scenes></support_ multichannel_scenes>

Type

Boolean: defaults to false.

Dynamic Capability

Variables

Note: Advanced Lighting Scene Agent does not currently have any enabled variables.

Always activates the scene that is referenced as the Toggle ID, even if the toggle scene is active. Common use case is to set two scenes toggle scenes to each other but it is possible to link multiple scenes to a single "Off" toggle scene or even create loops of multiple scenes that will activate the next scene in the scene loop when "Toggle Scene" is ran.

Parameters

SCENE_ID - Integer. ID of the scene to deactivate.

TOGGLE_SCENE

Will activate the scene ID specified if it is inactive. If the scene ID specified is active then the toggle scene ID will be activated.

Parameters

SCENE_ID - Integer. Integer. ID of the scene that will have its toggle scene activated.
