What’s New

What’s New in 4.1.0

The Mixer proxy was delivered in conjunction with Operating System 4.1.0.

Introduction

Mixer Proxy

Note: The Mixer Proxy is the first Lua Proxy delivered by Control4. The architecture used to develop this proxy is not currently available to third party developers. Furthermore, drivers developed using the Lua Proxy methodology lack a user interface which is typically provided for a driver written using Control4’s traditional, non-Lua proxies. Control4 is not in a position to provide user interfaces for third party drivers written using a Lua proxy.

The Mixer proxy is intended to be used in conjunction with the AV Switch proxy. The AV Switch proxy handles all the typical AV Switch functions such as input/output selection, room/zone volume control, etc. The Mixer proxy extends this functionality to support Mixer channel volume/mute control as well as Digital Signal Processing (DSP).

In addition to the normal AV Switch constructs of Inputs, Outputs and Selected Source the Mixer proxy adds Channels, Zones and Mixes. Channels also support advanced DSP signal processing including EQ, Compression, De-Essing and Noise Gate.

AV Pathing and Source selection are at the heart of most AV proxies and the Mixer proxy is no different. However, since the Mixer proxy is designed to extend the AV Switch proxy, some of these lines do get blurred. For example, a CD player bound to an input of the protocol driver is part of the AV Switch pathing logic but it is also a channel of the Mixer and as such can be part of a Mix.

Furthermore, it may be desired to start an audio session by just selecting a Mix of channels and not have a particular selected (controllable) source. Or the user may wish to select a single microphone (not controllable) as the selected source. To handle these use cases, No Control drivers have been created for both Microphone and Mix.

Since Mixes and Channels require different handling logic, the Mixer proxy must know if the selected source is a Channel or a Mix. To support this functionality, special mixId and channelId elements must be included in the appropriate Input Connections in the protocol driver. Using this modeling, the Proxy maintains a map of all connections with this data in the MIXER_CONNECTIONS table.

An important distinction (and possible source of confusion) is how the UI and Proxy handle Input Channel Volume. As in the case of actual mixer devices, an input channel has a level (volume) control which will affect the signal before any further modification of that channel in a mix. For example, if a device can create more than one mix, changing the input channel volume will affect the level of that channel in all mixes. Whereas changing the volume of that channel in a mix will only affect the level of that channel in that mix. While this is a straightforward concept, it does get clouded by Control4 source selection and control logic in conjunction with the fact that the mixer proxy is the first AV Proxy that handles volume control of an input (Room volume control adjusts the volume of an output/zone in a device). To simplify user interaction, it has been decided that, from a Control4 perspective, Input Channel Level will be a configuration element and not supported via the Control4 UI. So, when a Source is selected, the level control is visible but grayed out and not available for modification. When a Mix is selected, all Channels are available for modification in that Mix.

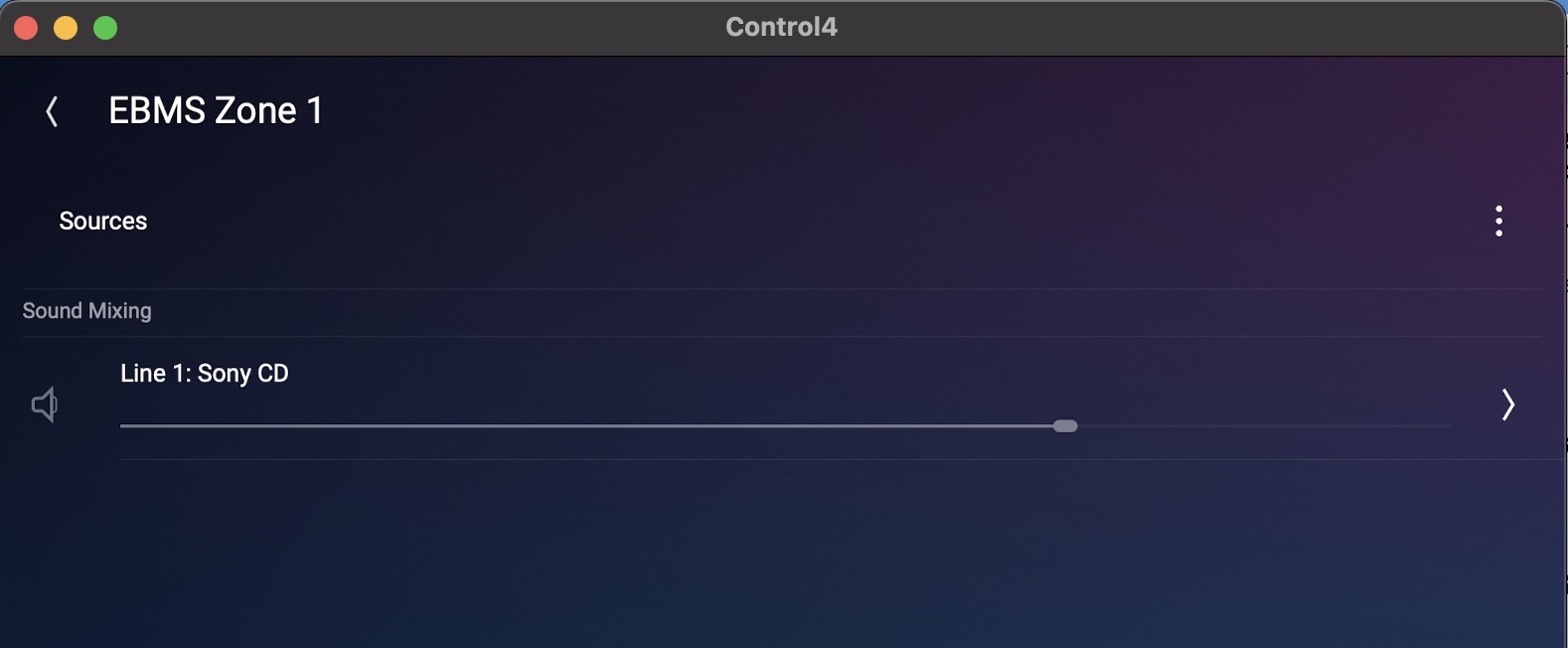

Channel Selected

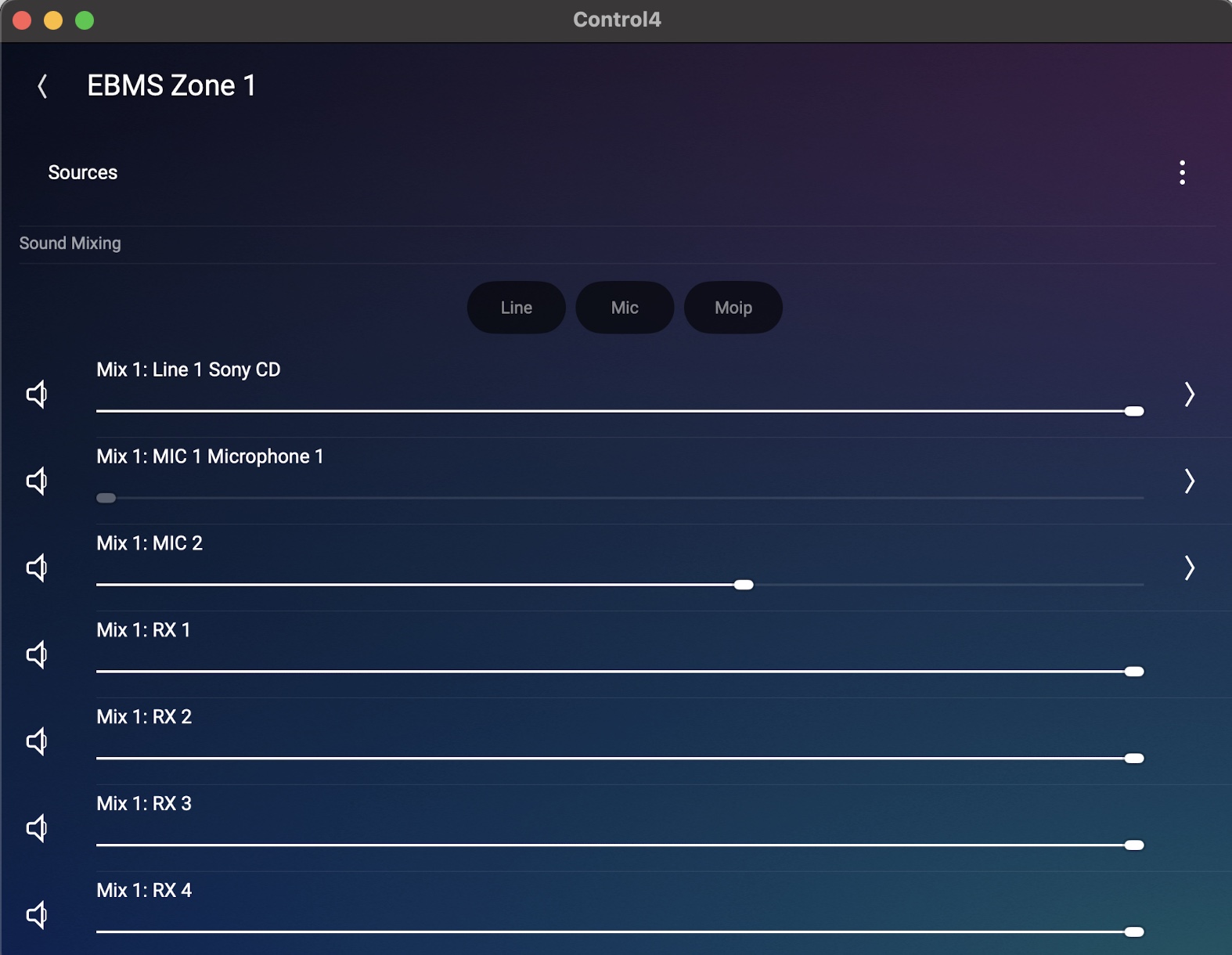

Mix Selected

Note that mixer driver development efforts are supported with a Mixer Proxy Driver Development Template. The mixer_proxy.zip file containing the template and a README instructional document can be found here: https://github.com/snap-one/docs-driverworks-proxyprotocol-mixer/tree/main/source/images

Minimum Requirements

• Composer Pro: 4.1.0
• Director version: 4.0.0

Mixer Proxy Commands

SET_CHANNEL

Sets any element that is declared in the JSON Channel structure. The parameter 'id' is required, the other parameters dictate the element to be set.

Name

SET_CHANNEL (param: String)

Example

In this example, the EQ for Channel 1 is being disabled.

SET_CHANNEL({param = '{"RoomId":7856,"eq":{"enabled":false},"id":1}}')

SET_ROUTING

Routes a Channel or a Mix to a Zone.

Name

SET_ROUTING ({ZONE_ID: Int, CHANNEL_ID: Int})

Example

In this example, the Channel 1 is Routed to Zone 1.

SET_ROUTING ({ZONE_ID = 1, CHANNEL_ID = 1})

SET_CHANNEL_INPUT_LEVEL

Sets the Input Level for a Channel.

Name

SET_CHANNEL_INPUT_LEVEL (roomId: Long, channelId: Int, level: Int)

SET_CHANNEL_MUTED

Sets Mute for a Channel.

Name

SET_CHANNEL_MUTED(roomId: Long, channelId: Int, muted: Boolean)

SET_EQ_ENABLED

Enable/Disable EQ for a Channel.

Name

SET_EQ_ENABLED(roomId: Long, channelId: Int, enabled: Boolean)

Example

SET_EQ_ENABLED({enabled = True, channelId = 2, roomId: 7977})

SET_COMPRESSOR_ENABLED

Enable/Disable Compressor for a Channel.

Name

SET_COMPRESSOR_ENABLED(roomId: Long, channelId: Int, enabled: Boolean)

Example

SET_COMPRESSOR_ENABLED({enabled = True, channelId = 2, roomId: 7977})

SET_DE_ESSER_ENABLED

Enable/Disable De-Esser for a Channel.

Name

SET_DE_ESSER_ENABLED(roomId: Long, channelId: Int, enabled: Boolean)

Example

SET_DE_ESSER_ENABLED({enabled = True, channelId = 2, roomId: 7977})

SET_NOISE_GATE_ENABLED

Enable/Disable Noise Gate for a Channel.

Name

SET_NOISE_GATE_ENABLED (roomId: Long, channelId: Int, enabled: Boolean)

Example

SET_NOISE_GATE_ENABLED({enabled = True, channelId = 2, roomId: 7977})

SET_EQ_BAND_ENABLED

Enable/Disable an EQ Band for a Channel.

Name

SET_EQ_BAND_ENABLED(roomId: Long, channelId: Int, bandId: Int, enabled: Boolean)

Example

SET_EQ_BAND_ENABLED({channelId = 2, bandId = 1, enabled = True, roomId: 7977})

SET_EQ_BAND_GAIN_LEVEL

Sets the EQ Band gain level for a Channel.

Name

SET_EQ_BAND_GAIN_LEVEL(roomId: Long, channelId: Int, bandId: Int, level: Float)

Example

SET_EQ_BAND_GAIN_LEVEL({channelId = 2, bandId = 1, level = 3, roomId: 7977})

SET_EQ_BAND_Q_LEVEL

Sets the EQ Band Q for a Channel.

Name

SET_EQ_BAND_Q_LEVEL(roomId: Long, channelId: Int, bandId: Int, level: Float)

Example

SET_EQ_BAND_Q_LEVEL({channelId = 2, bandId = 1, level = 3, roomId: 7977})

SET_EQ_BAND_FRQUENCY

Sets the EQ Band Center Frequency for a Channel.

Name

SET_EQ_BAND_FREQUENCY(roomId: Long, channelId: Int, bandId: Int, frequency: Int)

Example

SET_EQ_BAND_FREQUENCY({channelId = 2, bandId = 1, frequency = 200, roomId: 7977})

SET_COMPRESSOR_COMPONENT_VALUE

Sets the Value of a Compressor Element for a Channel.

Name

SET_COMPRESSOR_COMPONENT_VALUE(roomId: Long, channelId: Int, key: String, value: Float)

Example

SET_COMPRESSOR_COMPONENT_VALUE({channelId = 2, key = 'threshold', value = -10, roomId: 7977})

SET_DE_ESSER_COMPONENT_VALUE

Sets the Value of a De-Esser Element for a Channel.

Name

SET_DE_ESSER_COMPONENT_VALUE(roomId: Long, channelId: Int, key: String, value: Float)

Example

SET_DE_ESSER_COMPONENT_VALUE({channelId = 2, key = 'reduction', value = -5, roomId: 7977})

SET_NOISE_GATE_COMPONENT_VALUE

Sets the Value of a Noise Gate Element for a Channel.

Name

SET_NOISE_GATE_COMPONENT_VALUE(roomId: Long, channelId: Int, key: String, value: Float)

Example

SET_NOISE_GATE_COMPONENT_VALUE({channelId = 2, key = 'release', value = 250, roomId: 7977})

Mixer Proxy Notifications

CHANNELS_INIT

Initializes MIXER_CHANNELS Structure.

Name

CHANNELS_INIT(MIXER_CHANNELS: Table)

ZONES_INIT

Initializes MIXER_ZONES Structure.

Name

ZONES_INIT(MIXER_ZONES: Table)

MIXES_INIT

Name

MIXES_INIT(MIXER_ZONES: Table)

MIXER_CONNECTIONS

Initializes MIXER_CONNECTIONS Structure.

Name

MIXER_CONNECTIONS_INIT(MIXER_ZONES: Table)

CHANNELS_CHANGED

Notification of the currently selected Channel or Mix.

Name

CHANNELS_CHANGED(MIXER_CHANNELS: Table)

CHANNEL_CHANGED

Notification of change in any Channel Parameter.

Name

CHANNEL_CHANGED(MIXER_CHANNEL: Table)

Example

In this example, Channel 1 Input Level has changed to -7.

{"RoomId":7977,"id":1,"input_level":{"value":-7}}

In this example, The Gain of Band 1 of the EQ in Channel 1 has changed to 7.9.

{"RoomId":7856,"eq":{"bands":[{"gain":{"value":7.9000000000000004},"id":1}]},"id":1}

ZONE_CHANGED

Notification of change in any Zone Parameter

Name

ZONE_CHANGED(MIXER_ZONE: Table)

Example

In this example, Source 2 has been selected in Zone 1.

{"RoomId":7977,"id":1,"source":2,"sourceConnId":3002}

In this example, the Gain in Zone 1 has changed to -22.

{"RoomId":7977,"gain":-22,"id":1}

ZONE_SOURCE_CHANGED

ZONE SOURCE CHANGED

Notification of Channels with updated naming tags.

Name

ZONE_SOURCE_CHANGED(MIXER_CHANNELS: Table)

Mixer Proxy Variables

ACTIVE_ROOMS

ACTIVE_ROOMS - a comma delimited list of current rooms in the path.

Mixer Proxy Connections

CHANNEL_CONNECTIONS

Channel Connections shall include a channelid (integer) element.

    <connection proxybindingid="5001">
      <id>3001</id>
      <facing>1</facing>
      <connectionname>Source 1</connectionname>
      <type>6</type>
      <consumer>True</consumer>
      <audiosource>False</audiosource>
      <videosource>False</videosource>
      <linelevel>True</linelevel>
      <channelid>1</channelid>
      <classes>
        <class>
          <classname>STEREO</classname>
        </class>
      </classes>
    </connection>

CHANNEL_CONNECTIONS

Mix Connections shall include a mixid (integer) element

    <connection proxybindingid="5001">
      <id>3017</id>
      <facing>1</facing>
      <connectionname>Mix 1</connectionname>
      <type>6</type>
      <consumer>True</consumer>
      <audiosource>False</audiosource>
      <videosource>False</videosource>
      <linelevel>True</linelevel>
      <mixid>1</mixid>
      <classes>
        <class>
          <classname>STEREO</classname>
        </class>
      </classes>
    </connection>
